8-88 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
No Toner Sensor (Y), (M), and (C) (PL7.2.5)
The procedure for removing the No Toner Sensor from the (Y), (M), or (C)
Toner Cartridge Holder is essentially the same. The procedure described
below applies to all three.
o
e
To control toner spillage, do not disconnect the Auger Tube from the
Developer Frame Assembly unless absolutely necessary to perform the
repair. Remove the HVPS to access the Auger Tube connections.
1. Remove the CRUM Reader (page 8-84).
2. Remove the Toner Cartridge Holder (page 8-86).

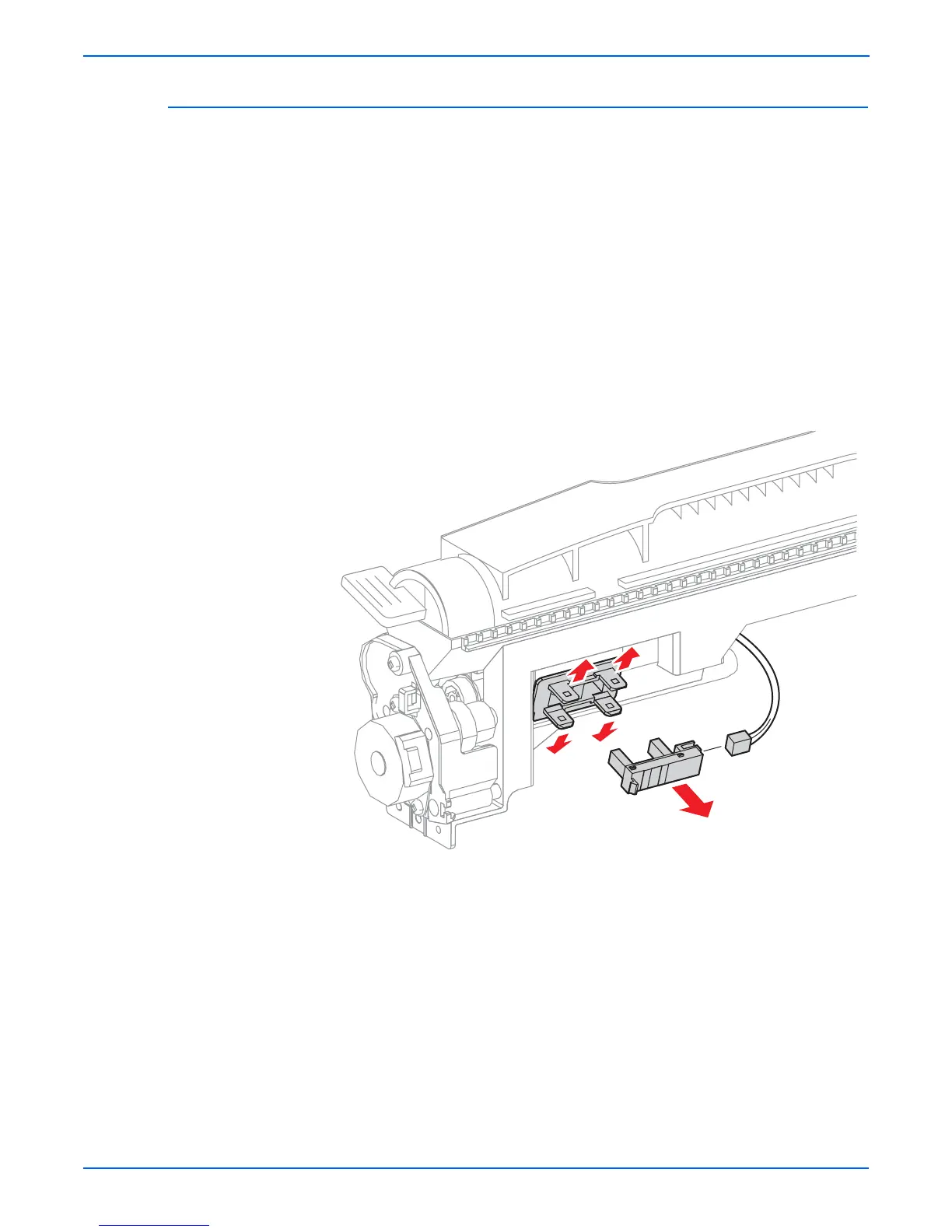

3. Spread the 4 hooks on the Toner Cartridge Holder that secure the No
Toner Sensor.
4. Unplug the connector from the No Toner Sensor and remove the sensor.
Replacement Note
Lock all four Toner Cartridge Holders into the CRUM Reader.
s6360-205
