Xerox Phaser 6360 Service Manual

8-90 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

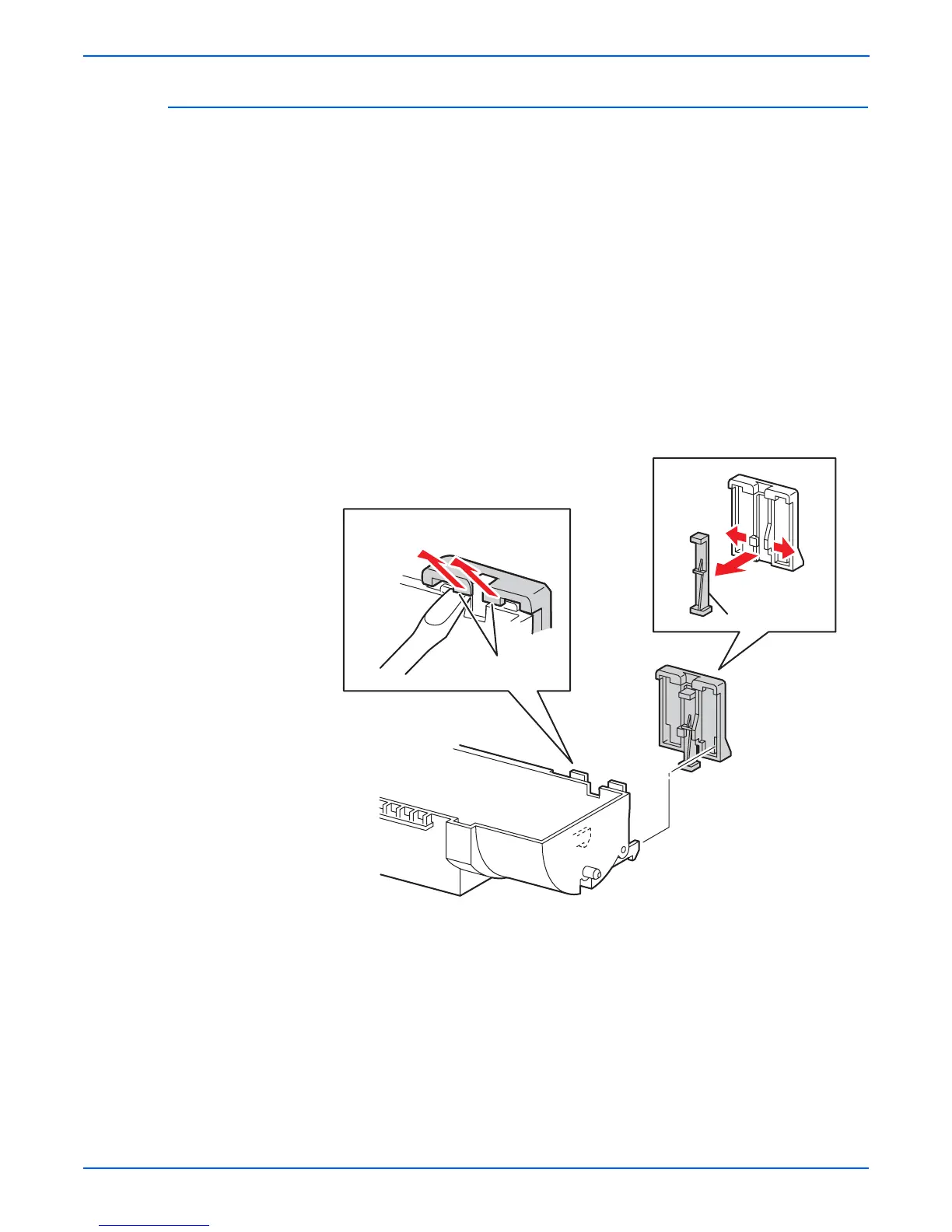

Toner CTG-IN Actuator and Switch Bracket (PL7.2.7)
The following procedure applies to all four Toner CTG-IN Actuators and
brackets.
N
o
t
e
To control toner spillage, do not disconnect the Auger Tube from the
Developer Frame Assembly unless absolutely necessary to perform the
repair. Remove the HVPS to access the Auger Tube connections. Use
care when handling the holder to avoid Toner leaking from the tube.
1. Remove the CRUM Reader (page 8-84).
2. Unlock and remove the Toner Cartridge.
3. Remove the Toner Cartridge Holder (page 8-86).
4. Release the 2 hooks that secure the bracket to the Toner Cartridge Holder
with a miniature screwdriver or similar tool and remove the bracket.
5. Release the bracket hooks and remove the Actuator.
Replacement Note
Lock all four Toner Cartridge Holders into the CRUM Reader.
s6300-207
Sensor Actuator
Hooks

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
