8-30 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Paper Pick Assembly (PL3.3.1)
1. Remove the Printer Chassis (page 8-24).
2. Remove the plug (P471) from the Paper Size Switch.
3. Loosen the harness to the Paper Pick Assembly from the Feeder harness
guide.
4. Remove the 2 screws (self-tapping, plastic 10 mm) that secure the Paper
Pick Assembly to the Feeder and remove.

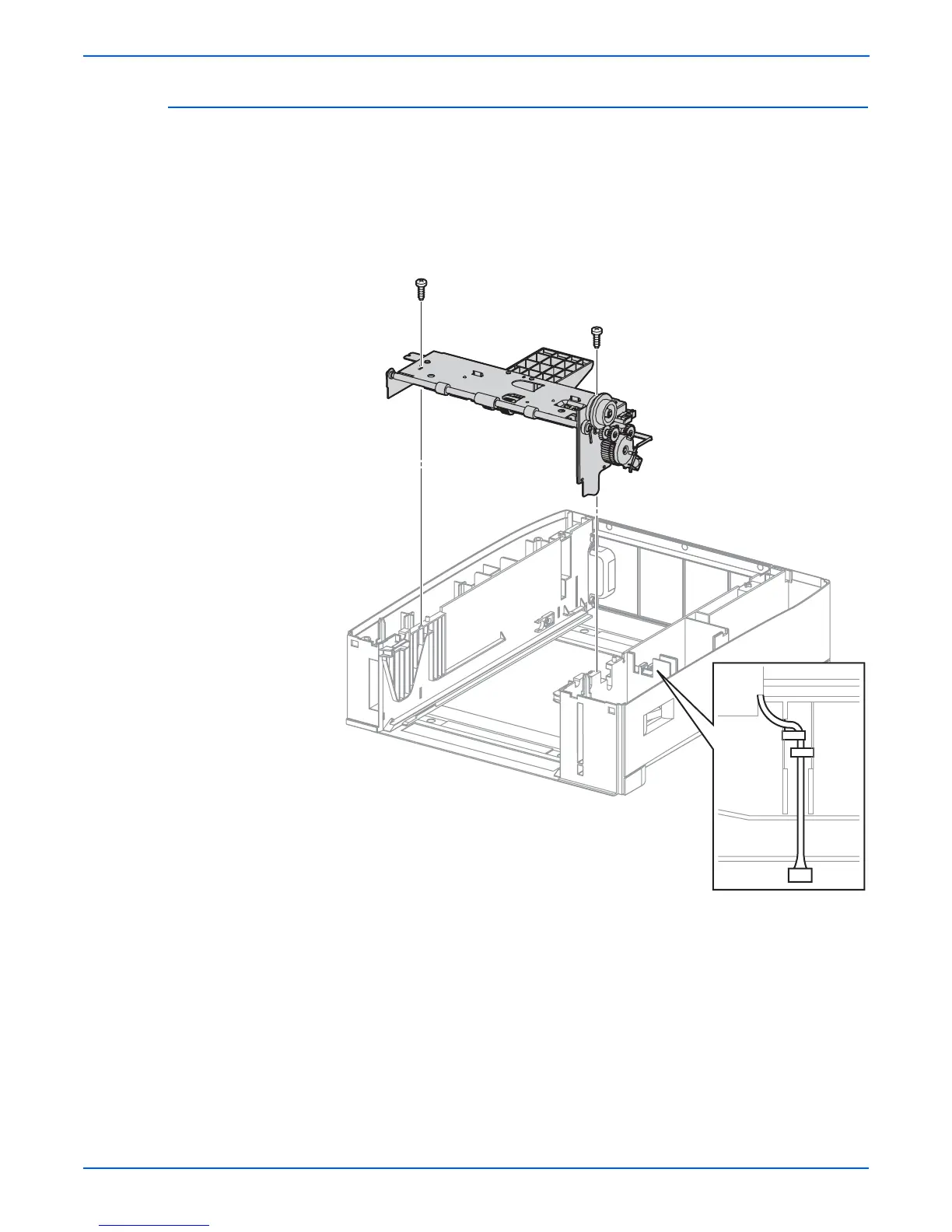

s6360-145
