Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-137
Service Parts Disassembly

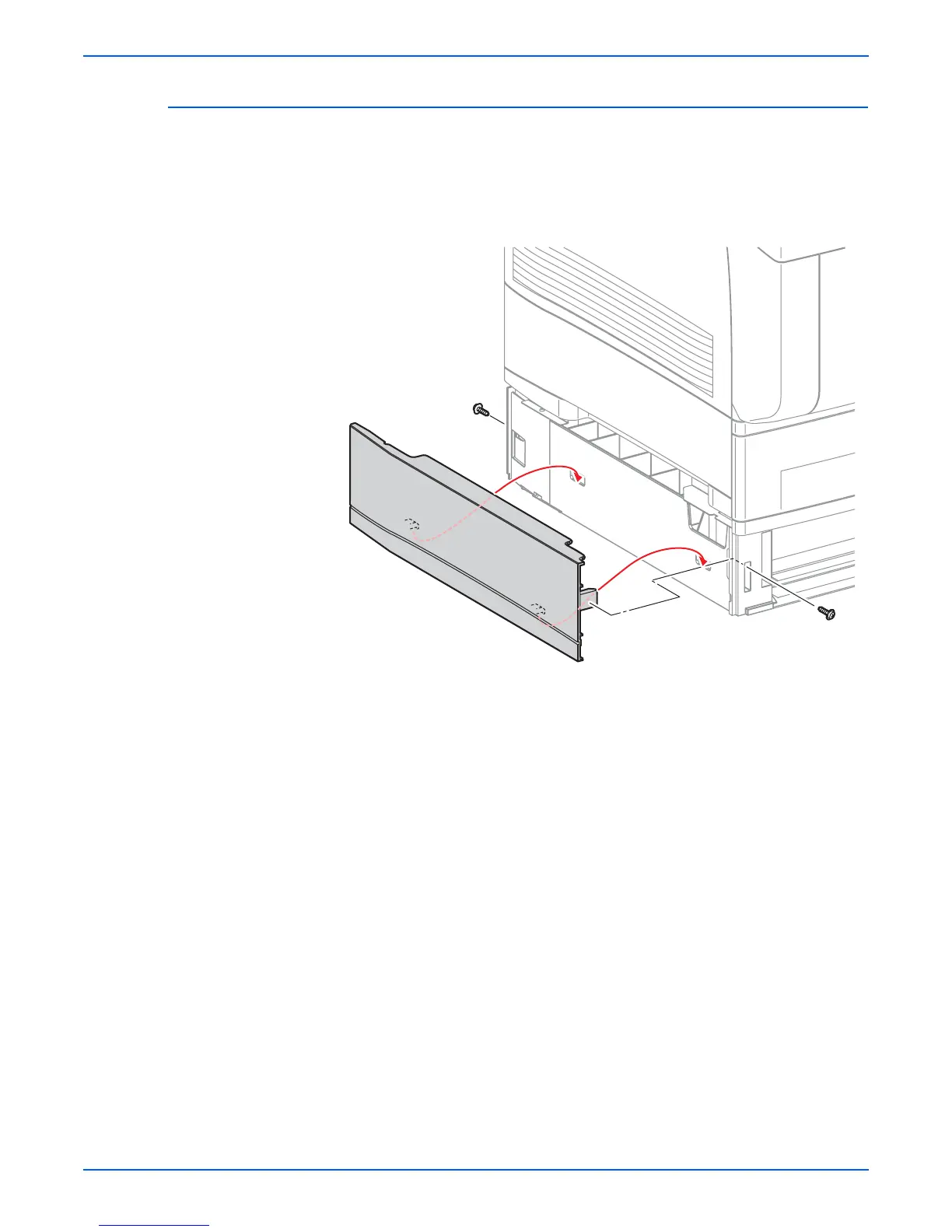

Left Cover (PL11.1.7)
1. Remove Tray 3 from the printer.
2. Remove 2 screws (self-tapping, flanged, plastic, 8mm) that secure the
Left Cover.
3. Release two hooks at the rear and remove the cover.
s6360-231
