Covers

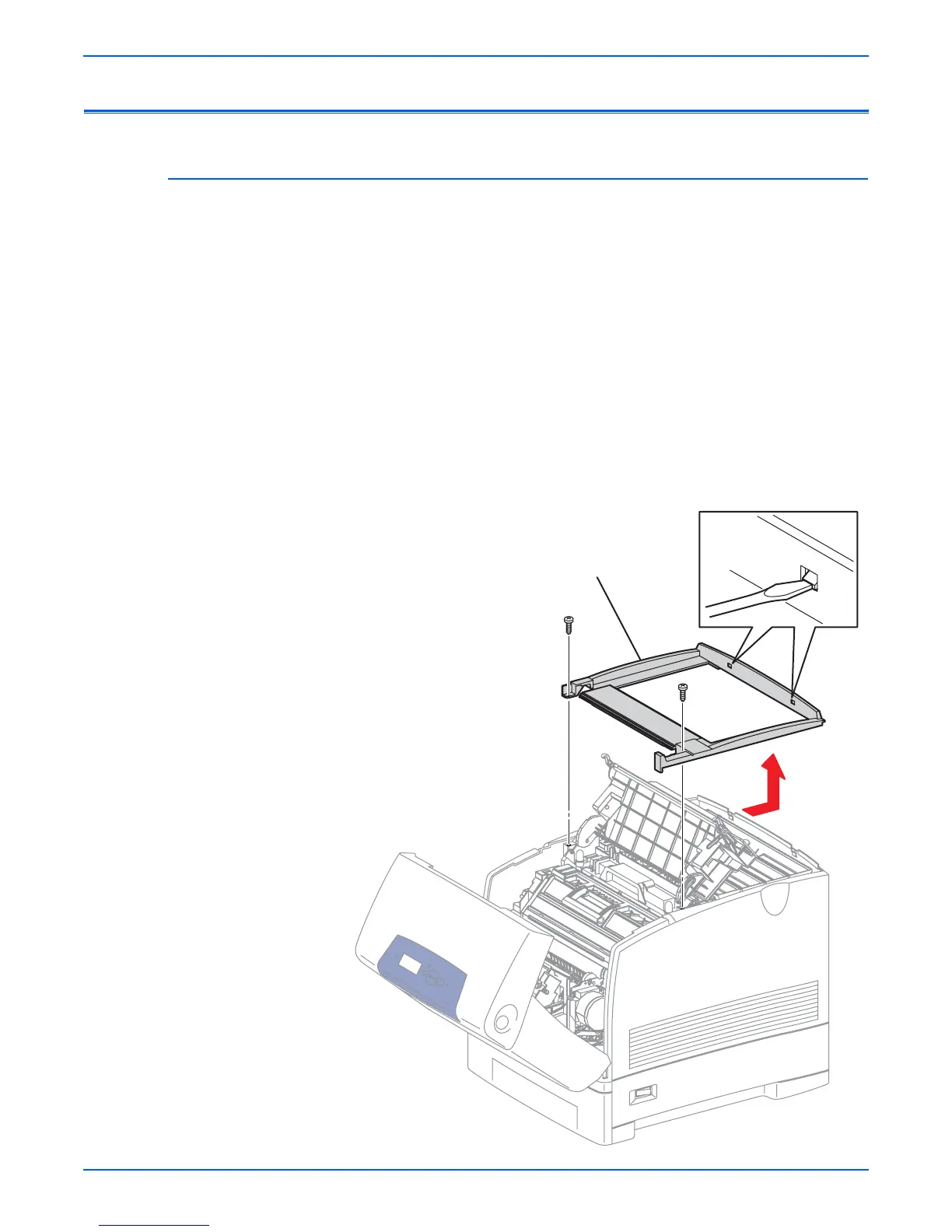

Top Main Cover (PL1.1.4)
1. Remove the Top Cover.
2. Open the Door A.
3. Remove the Toner Cartridges.
4. Open Door C.
5. Remove 2 screws (self-tapping, plastic 10 mm) that secure the Top Main
Cover.
6. Release the 2 hooks at the rear of the cover.
7. Hold Door C open slightly. Pull out and remove the Top Main Cover
toward the back of the printer.
N
o
t
e
After removal of the Top Main Cover, replace the Toner Cartridges to
reduce the amount of toner spillage and contamination.
s6360-125
Top Main Cover
