Xerox Phaser 6360

Phaser 6300/6350/6360 Service Manual 10-33
Wiring Diagrams

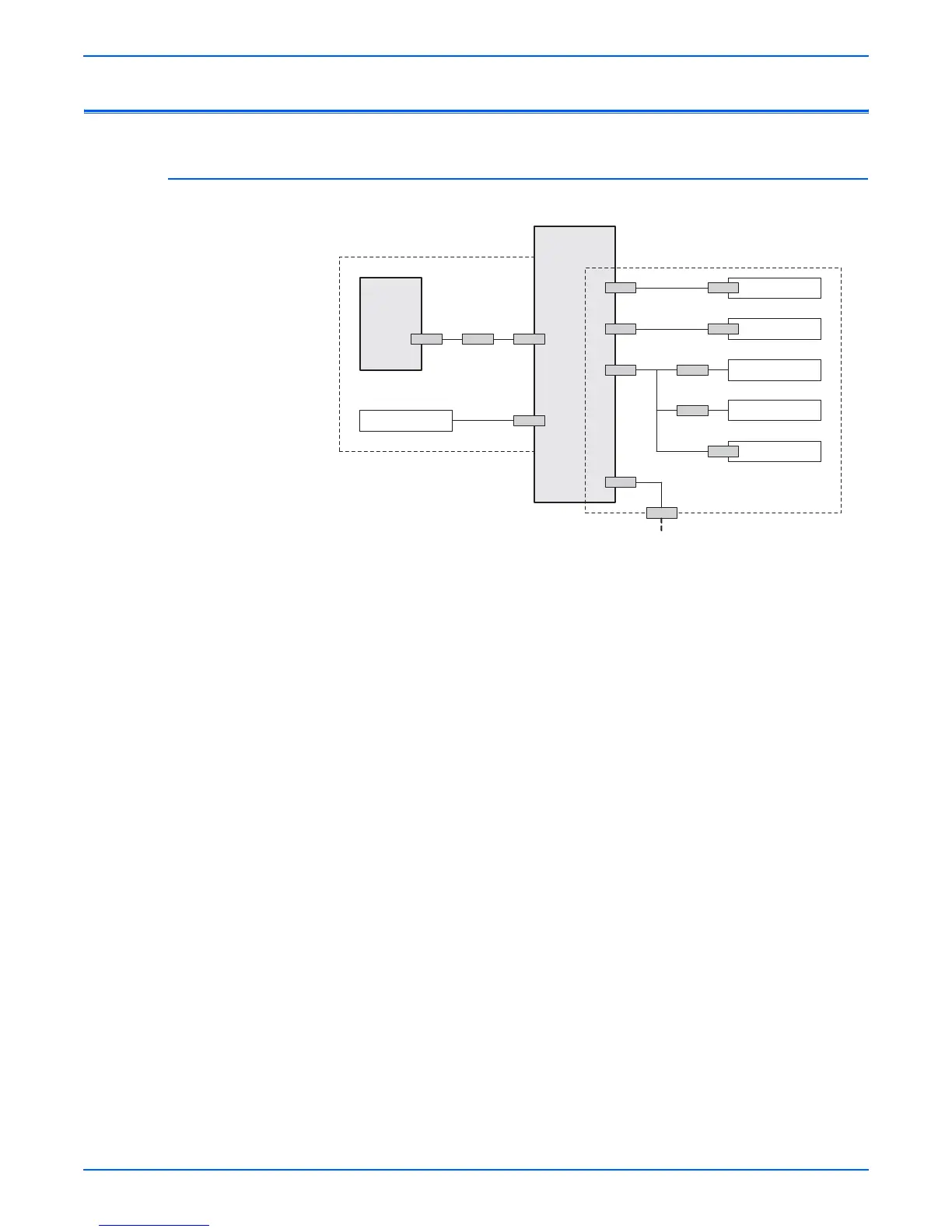

550-Sheet Feeder Wiring Diagrams
550-Sheet Feeder General Wiring
Engine Control
Board
PL9.1.16
P/J17 P/J171
OPTFDR 1 Board
PL11.1.10
P/J83
P/J80
Paper Size Switch
PL11.2.6
P/J821
P/J81
Low Paper Sensor
PL11.3.7
P/J823
P/J82
Drive Assy
PL11.3.15
P/J85
Turn Roller Clutch
PL11.3.4
P/J825
Feed Solenoid
PL11.3.11
P/J824
No Paper Sensor
PL11.3.7
P/J822
P/J84
P/J172
To 1100 Sheet Feeder
s6360-332
Drive
Tray
7
Drive Section
14
Tray
