8-36 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
No Paper Sensor Actuator (PL3.3.20)
1. Remove the Printer Chassis (page 8-24).
2. Remove the Feeder Chute (page 8-22).
3. Remove the Paper Pick Assembly (page 8-30).
4. Turn the Paper Pick Assembly over.

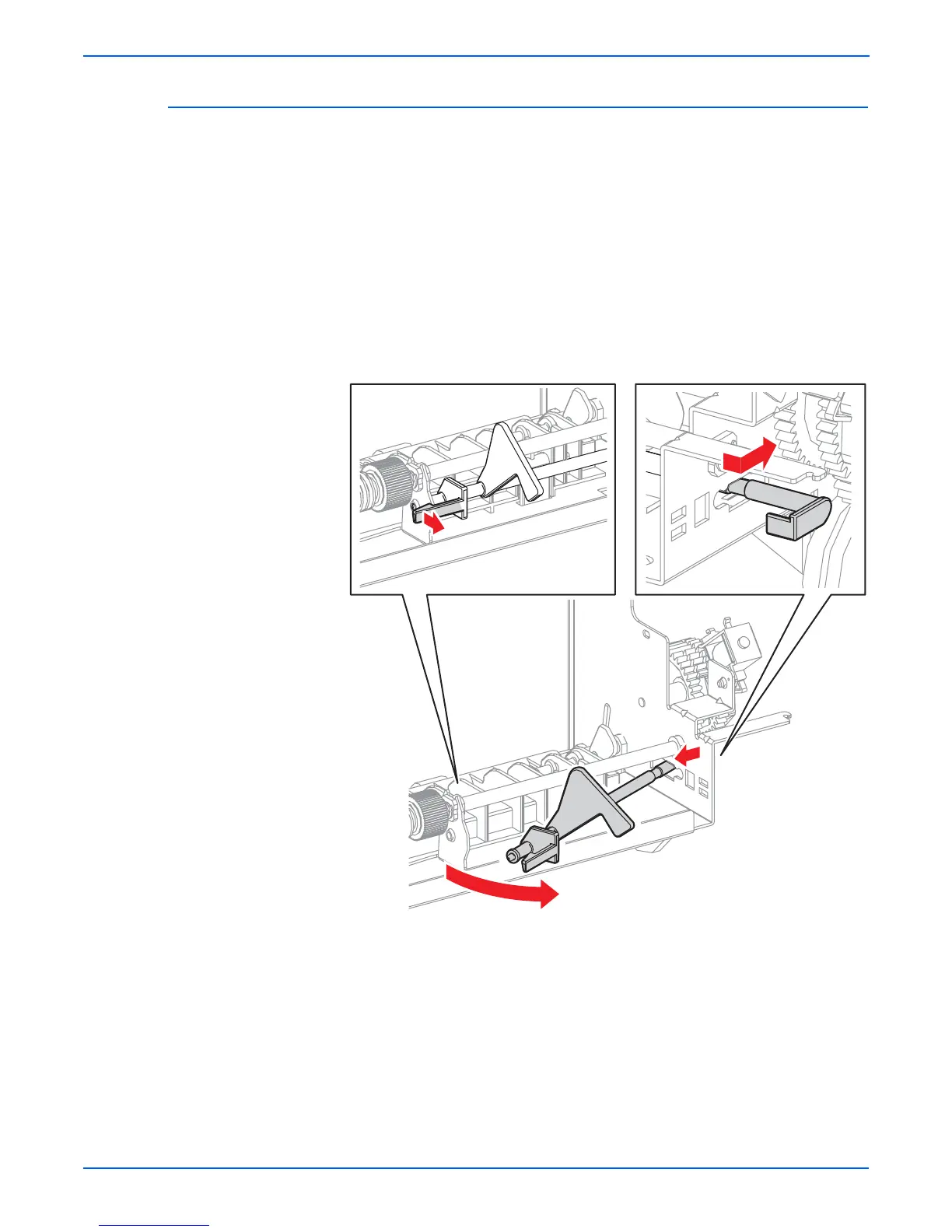

5. Release the hook that secures the No Paper Sensor Actuator to the
Paper Pick Assembly.
6. Pull the actuator out slightly, and then shift the thin section of the shaft
from the hole to the slot side. (No Paper Sensor removed for
simplification.)
7. Remove the No Paper Sensor Actuator shaft out of the hole in the Paper
Pick Assembly while moving the hook side of the actuator forward.
s6360-153
