8-142 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Paper Pick Assembly (PL11.3.1)
1. Remove the 550-Sheet Feeder (page 8-135).
2. Remove the Right Cover (page 8-136).
3. Remove the Left Cover (page 8-137).
4. Remove the Drive Assembly (page 8-147).

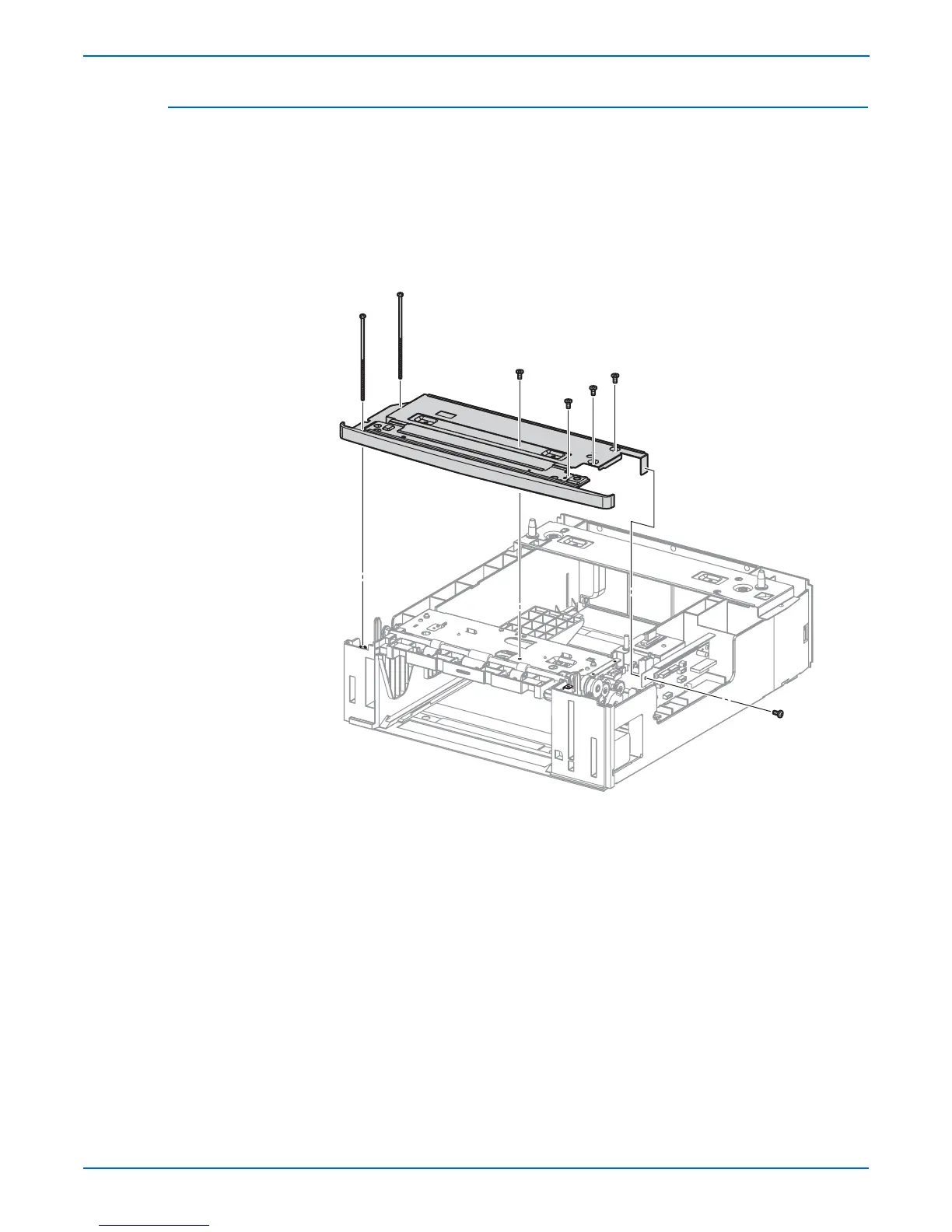

5. Remove two long screws and five short screws (metal, 6 mm) that secure
the Top Frame Assembly, and remove it from the Feeder.
s6360-233
