Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-47
Service Parts Disassembly
Tray 1 (MPT) No Paper Sensor and Actuator (PL5.3.14)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Left Side Cover (page 8-15).
3. Open Door B.

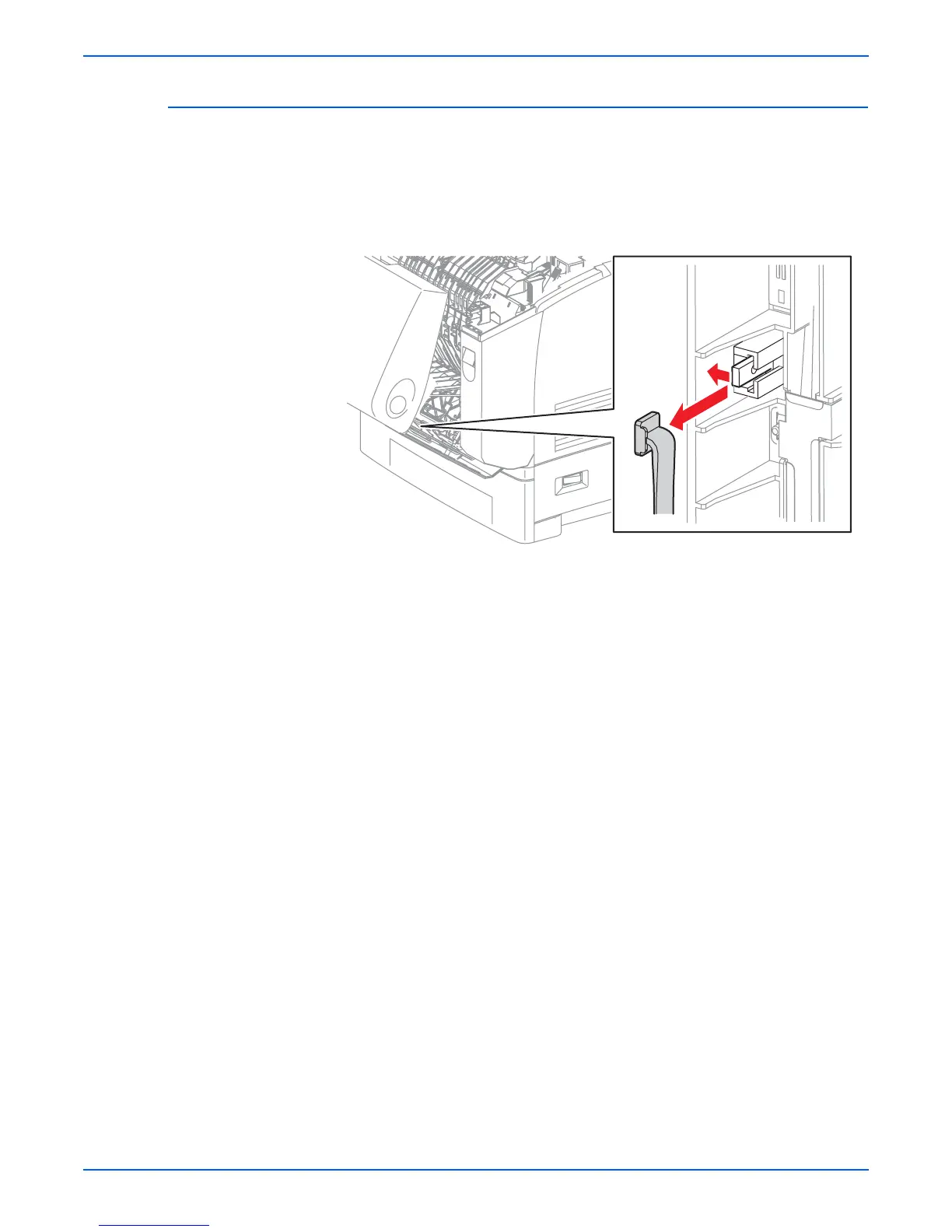

4. Release the hook to remove the Stopper Strap from Door B.
5. Close Door B.
Caution
Hold the Door B after releasing the Link and spring to prevent it from
falling open. Gently lower Door B to the supporting surface.
s6360-175
To Next Page
