Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-99
Service Parts Disassembly
Electrical
Image Processor Board (PL9.1.3)

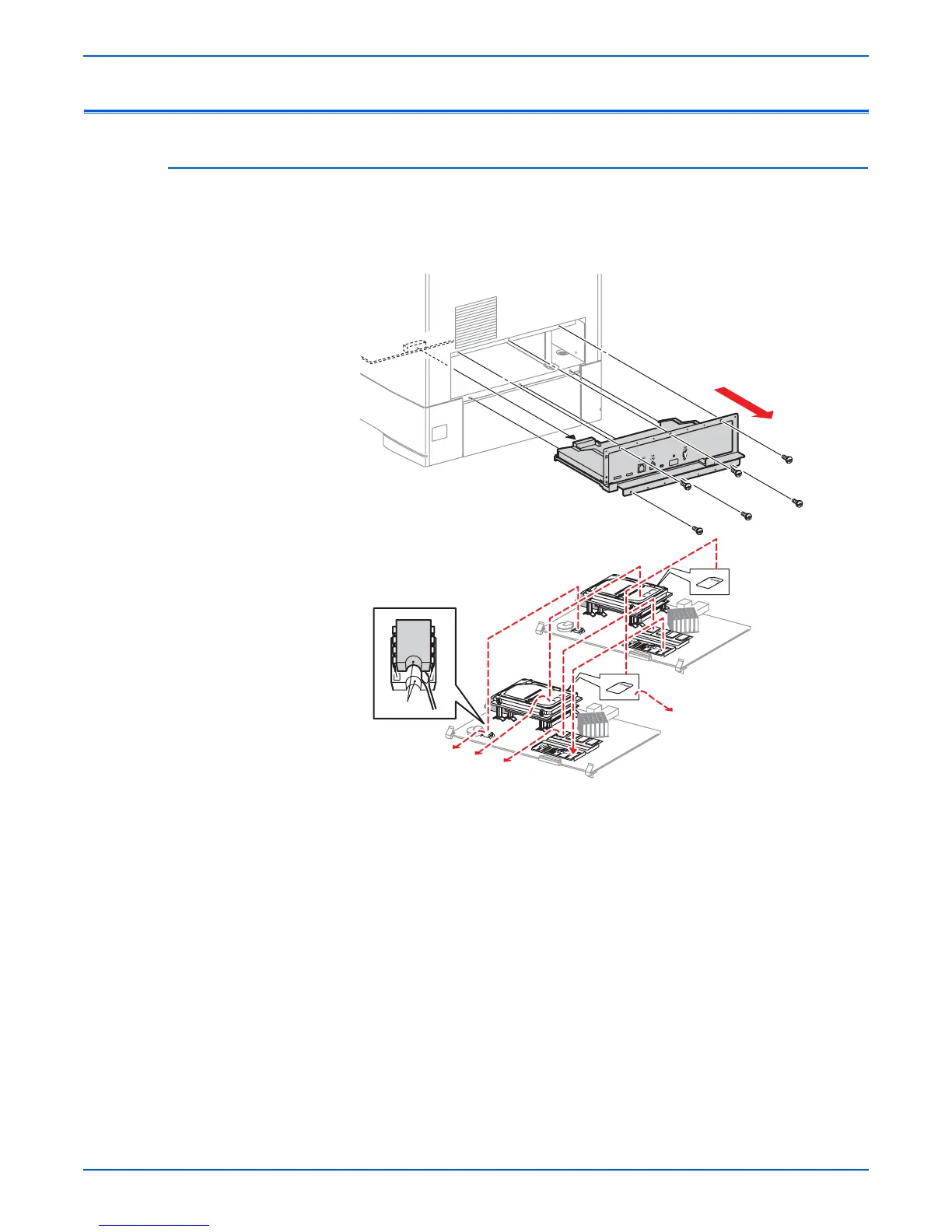

1. Remove the Tray Rear Cover (page 8-23).
2. Remove the 6 screws that secure the Rear Panel to the printer and pull to
remove.
3. Transfer the installed Memory, NVRAM, Configuration Card, and Hard
Drive from the old board to the new board.
Note
Print a Configuration page after the new board is installed to verify the
customers configuration is restored.
Notch
s6360-365
