Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-141
Service Parts Disassembly
Paper Size Switch (PL11.2.6)
1. Remove the 550-Sheet Feeder (page 8-135).
2. Disconnect the Paper Size Switch connector (P/J821).
3. Remove a screw (self-tapping, plastic 8 mm) that secures the Paper Size
Switch to the Right Feeder and remove the switch.

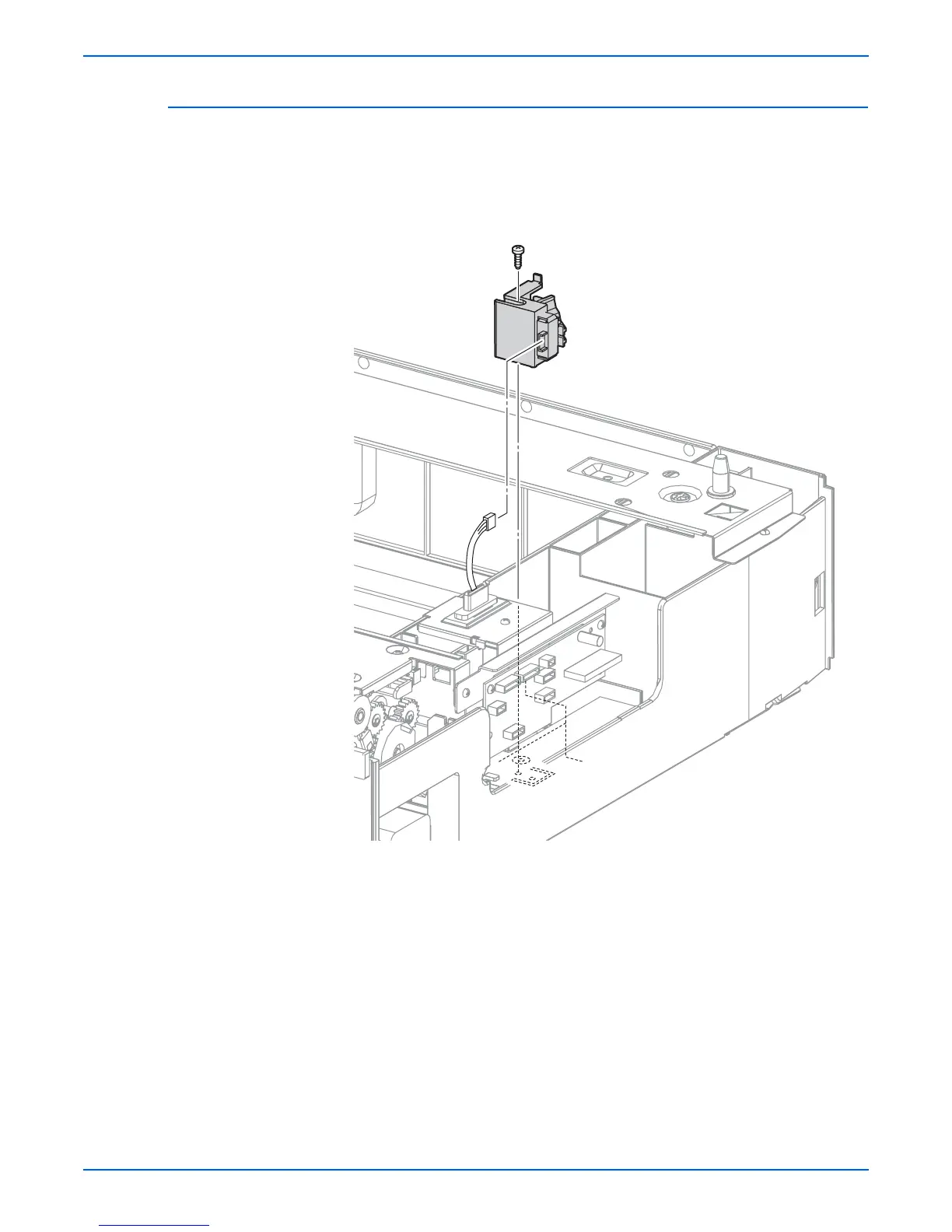

s6360-232
P/J821
