Xerox Phaser 6360 Service Manual

8-42 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

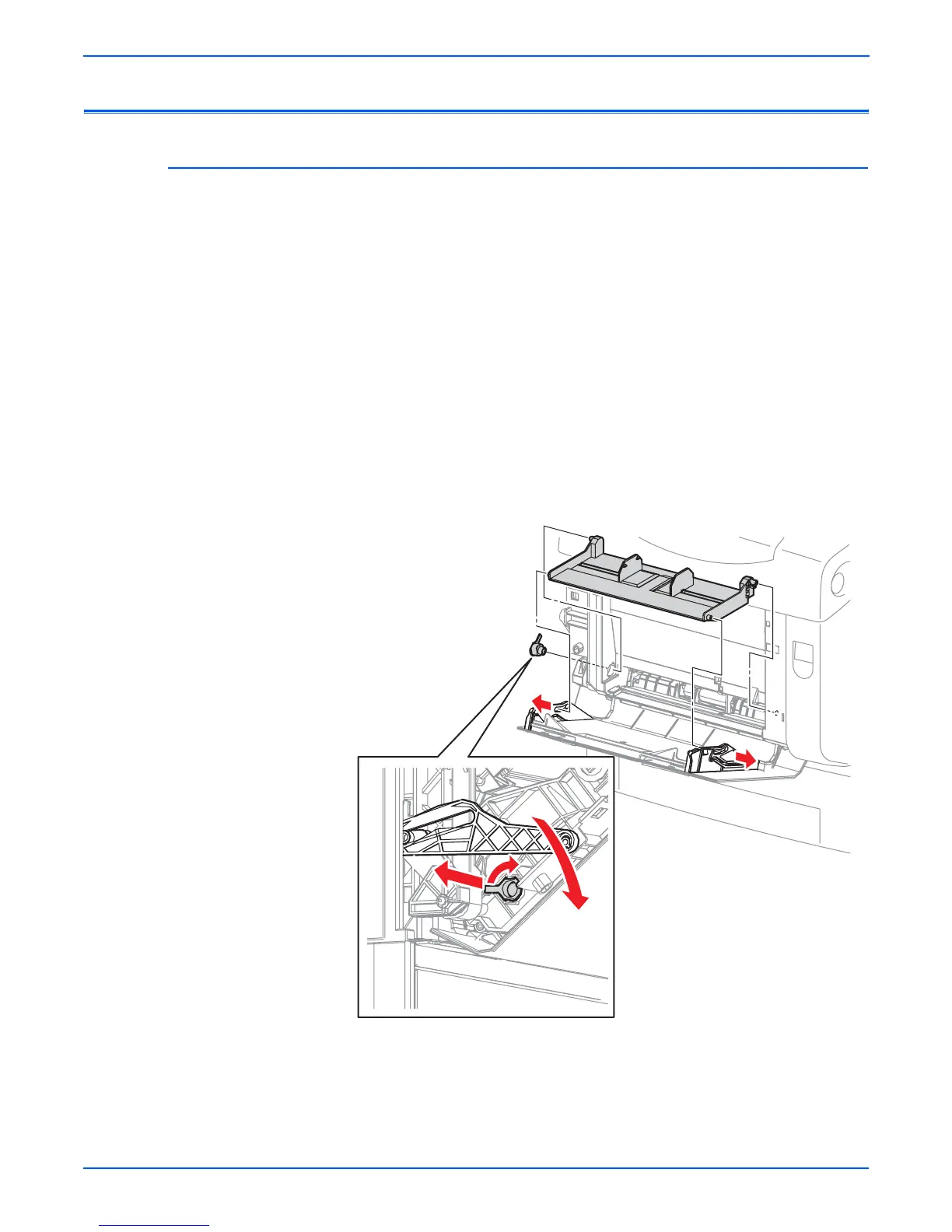

Tray 1 (MPT)
Tray 1 (MPT) (PL1.1.23)
N
o
t
e
Tray 1 (MPT) has been updated for use on all models. When replacing the
Tray 1 (MPT), use P/N 802K74593. Do not use P/N 116-1973-00.
1. Remove the Left Front Cover (page 8-19).
2. Spread the right and left slots of the Tray 1 (MPT) Cover outward, pull out
the left and right bosses to release Tray 1 (MPT) from the cover.
3. Open Door B.
4. Release the left side boss of Tray 1 (MPT) by rotating the Left Tray Holder
clockwise to remove it.
N
o
t
e
The right side bushing is not captive. Note the Bearing’s orientation as
you remove it.
5. Move Tray 1 (MPT) to the right to release the left boss from the frame and
pull the right boss and bushing from the right side to remove the tray.
Replacement Note
Rotate the Tray Holder beyond the stop to lock it in place.
s6360-133

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
