Theory of Operation
Paper Path of the Printer

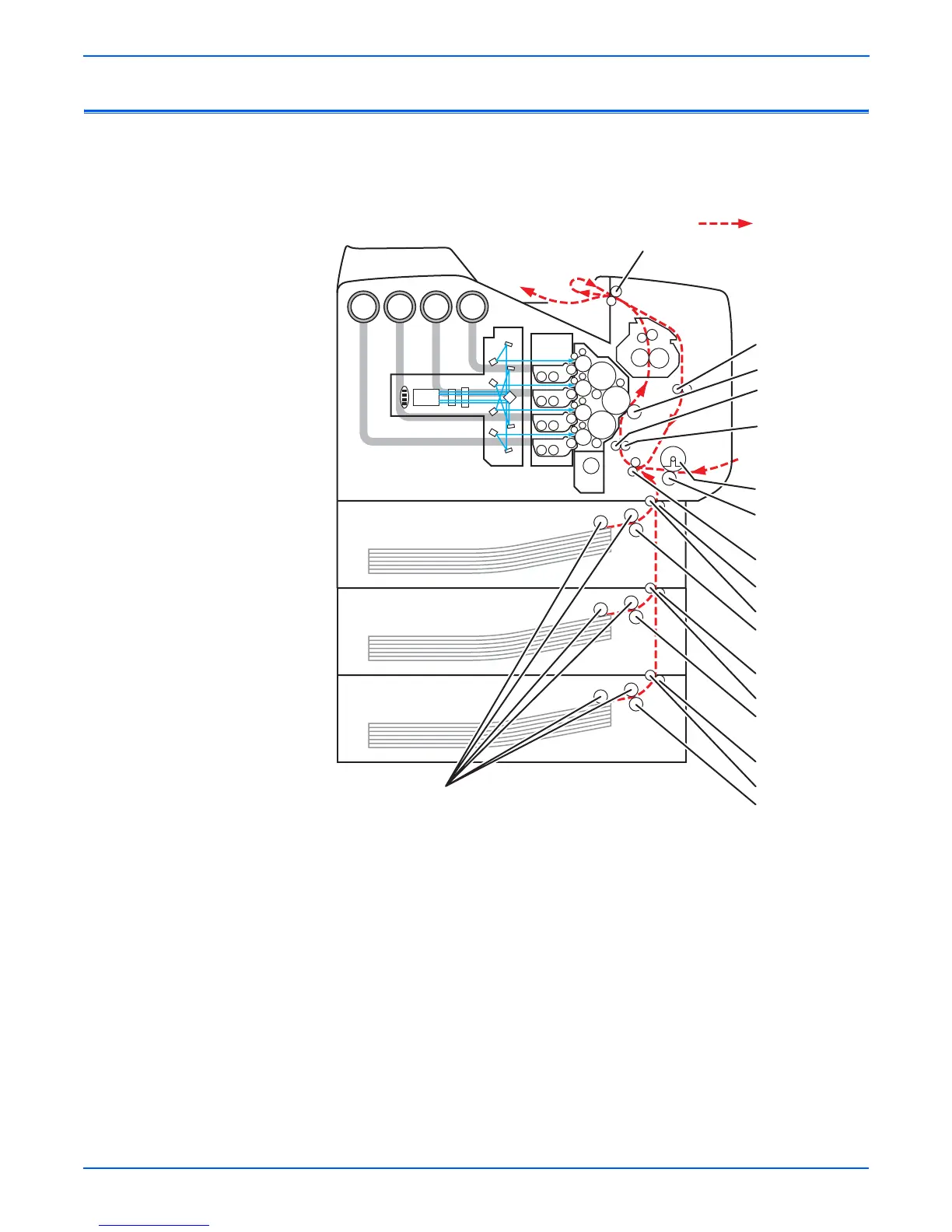

Paper path components and routing for the printer and the optional 1100-
Sheet High-Capacity Feeder are shown in the following figure.
s6360-07
8
Retard Roller
Feed Roller Assembly
Turn Roller
Feeder Chute
Tray 1 Feed Roller
Retard Roller
Tray 1 Turn Roller
Rubber
Registration Roller
Metal
Registration Roller
Duplex Roller
Transfer Roller
Exit Roller
Retard Roller
Turn Roller
Feeder Chute
Retard Roller
Turn Roller
Feeder Chute
: Paper transfer
