8-44 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 1 (MPT) Feed Solenoid (PL5.3.9)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Left Side Cover (page 8-15).
3. Remove the Right Front Cover (page 8-18).
4. Remove the Right Side Cover (page 8-14).
5. Open Door B.
6. Remove the Tray 1 (MPT) Feed Solenoid connector (P/J132) from the
Front Harness Guide on the right side of the printer and disconnect the
connector.
Caution
Use care when cutting the cable tie binding the harness bundle.
7. Cut the cable tie binding the harness at the right front corner of the printer
and remove the Tray 1 (MPT) Feed Solenoid harness from the bundle.
8. Disconnect the Control Panel Harness (P22) from the Engine Control
Board and remove the harness from the Front Harness Guide.

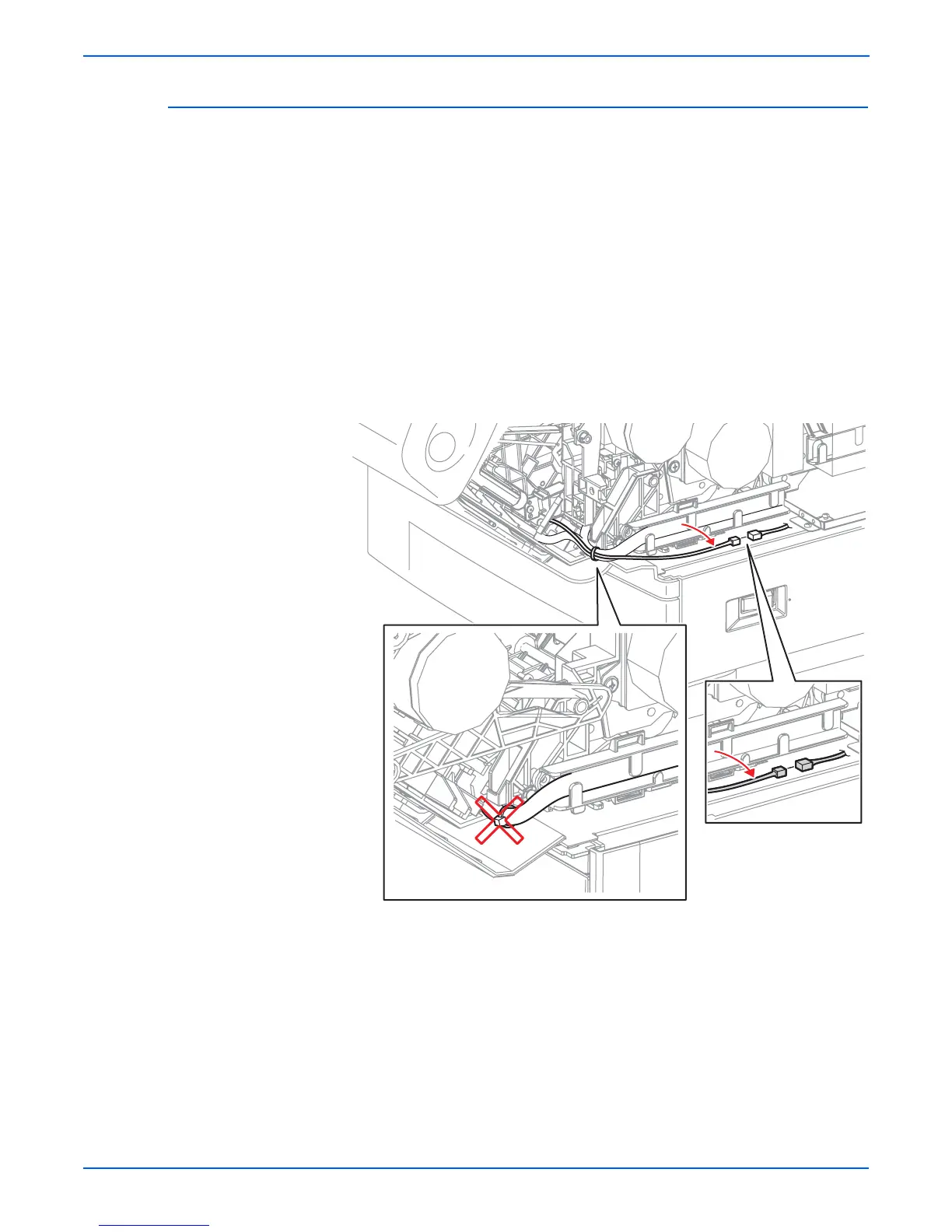

s6360-171
P/J132
