Xerox Phaser 6360 Service Manual

Phaser 6300/6350/6360 Service Manual 10-13
Wiring Diagrams
Wiring Diagrams

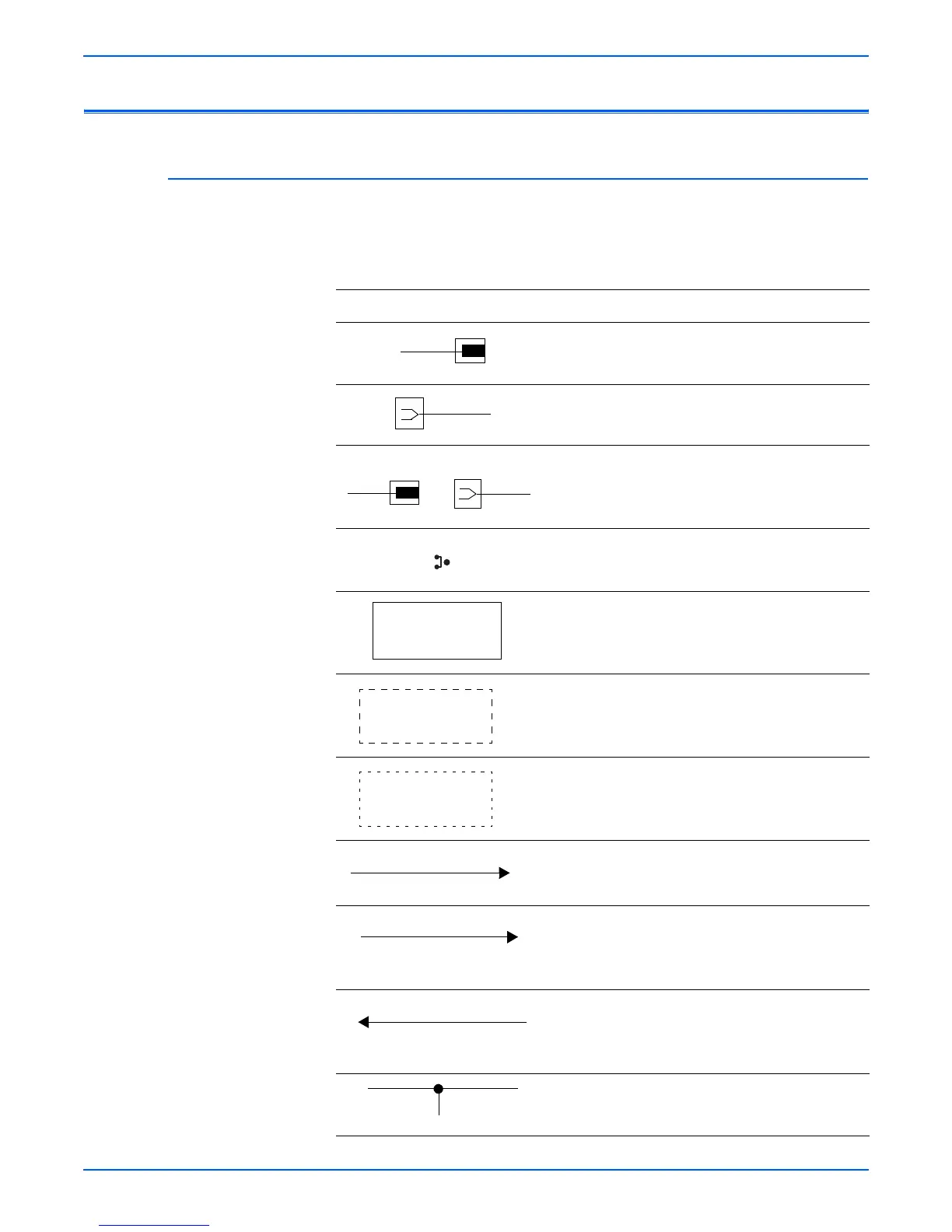

Notations Used in Wiring Diagrams
The following describes the legend used in the wiring diagrams shown on the
following pages.
Symbol Description
Denotes a plug.
Denotes a jack.
Denotes Pin yy and Jack yy of the connector Pxx
and Jxx.
Denotes a Jumper Point (JPxxx/xxx). Each end of
the Jumper connection has a numeric designation.
Denotes the parts.
PL X.Y.Z implies the item "Z" of plate (PL) "X.Y" in
Parts List.
Denotes functional parts attached with functional
parts name.
Denotes the control and its outline in PWB.
Denotes a connection between parts with
harnesses or wires, attached with signal name/
contents.
Denotes the function, and logic value of the signal
to operate the function (Low: L, High: H).
The given voltage is for signal in high status.
The arrow indicates the direction of signal.
Denotes the function, and logic value of the signal
when the function operated (Low: L, High: H).
The given voltage is for signal in high status.
The arrow indicates the direction of signal.
Denotes a connection between wires.
P/JXX
YY
JPxxx
Fuser
PL X.Y.Z
Heater
Control
DEVE_A
CLUTCH ON(L)+24VDC
EXIT SENSED(L)+3.3VDC

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
