Phaser 6300/6350/6360 Color Laser Printer Service Manual 2-39
Theory of Operation
Tray 2
■ Retard Roller
The Retard Roller limits paper pickup 1 sheet at a time. The Retard Roller
and the Nudge Roller are interchangeable parts in all universal trays.
■ Side Guides Right and Left
The side guides move against media to align or register the width of print
media in the paper feed direction.
■ Rear Guide
The Rear Guide moves to determine the length of print media in the paper
feed direction. The Rear Guide contacts the Paper Size Switch actuators
to detect the paper size loaded in the tray.

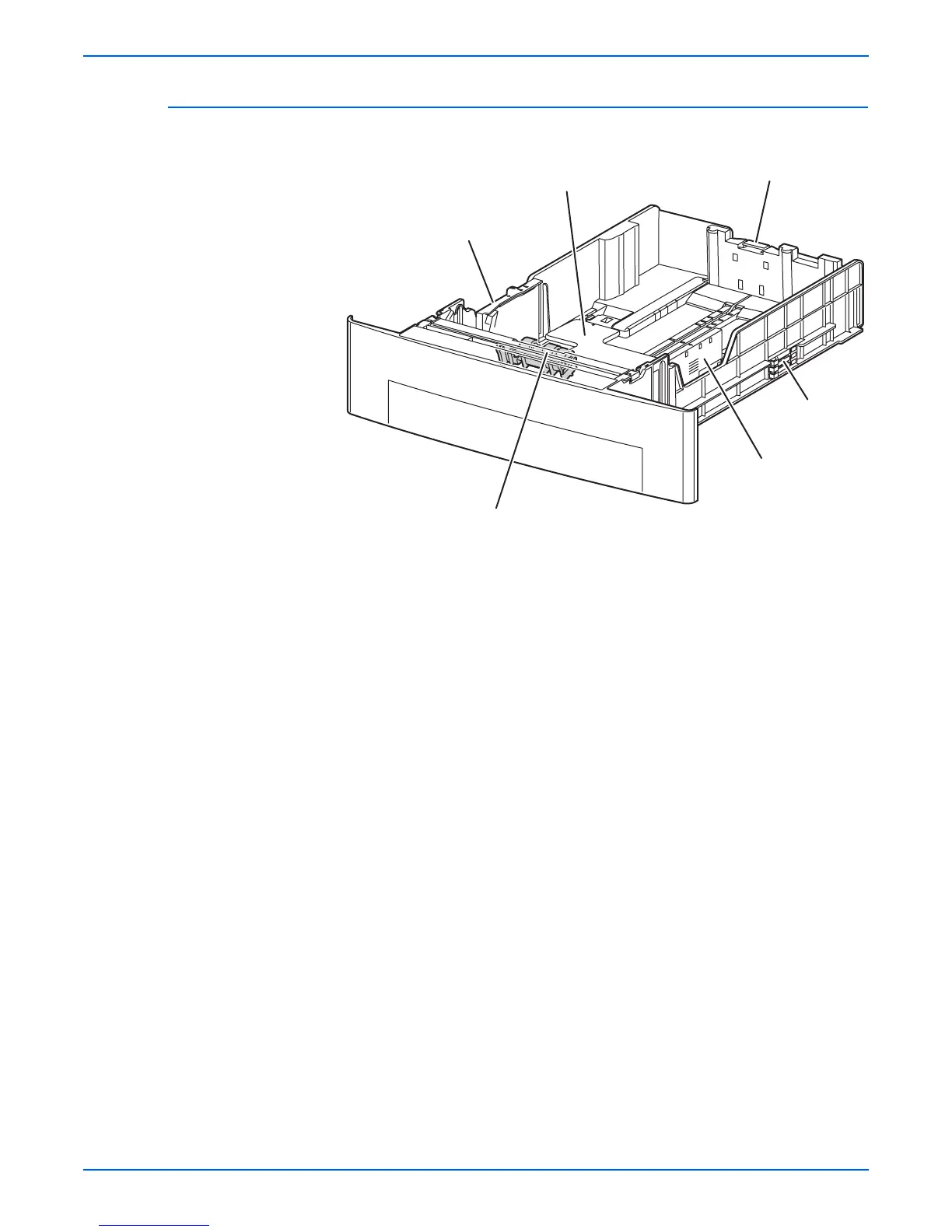

Side Guide
Bottom Plate
Side Guide
Rear Guide
Retard Roller
Paper Size
Switch Actuators
s6360-056
