Phaser 6300/6350/6360 Color Laser Printer Service Manual 7-3
Cleaning and Maintenance

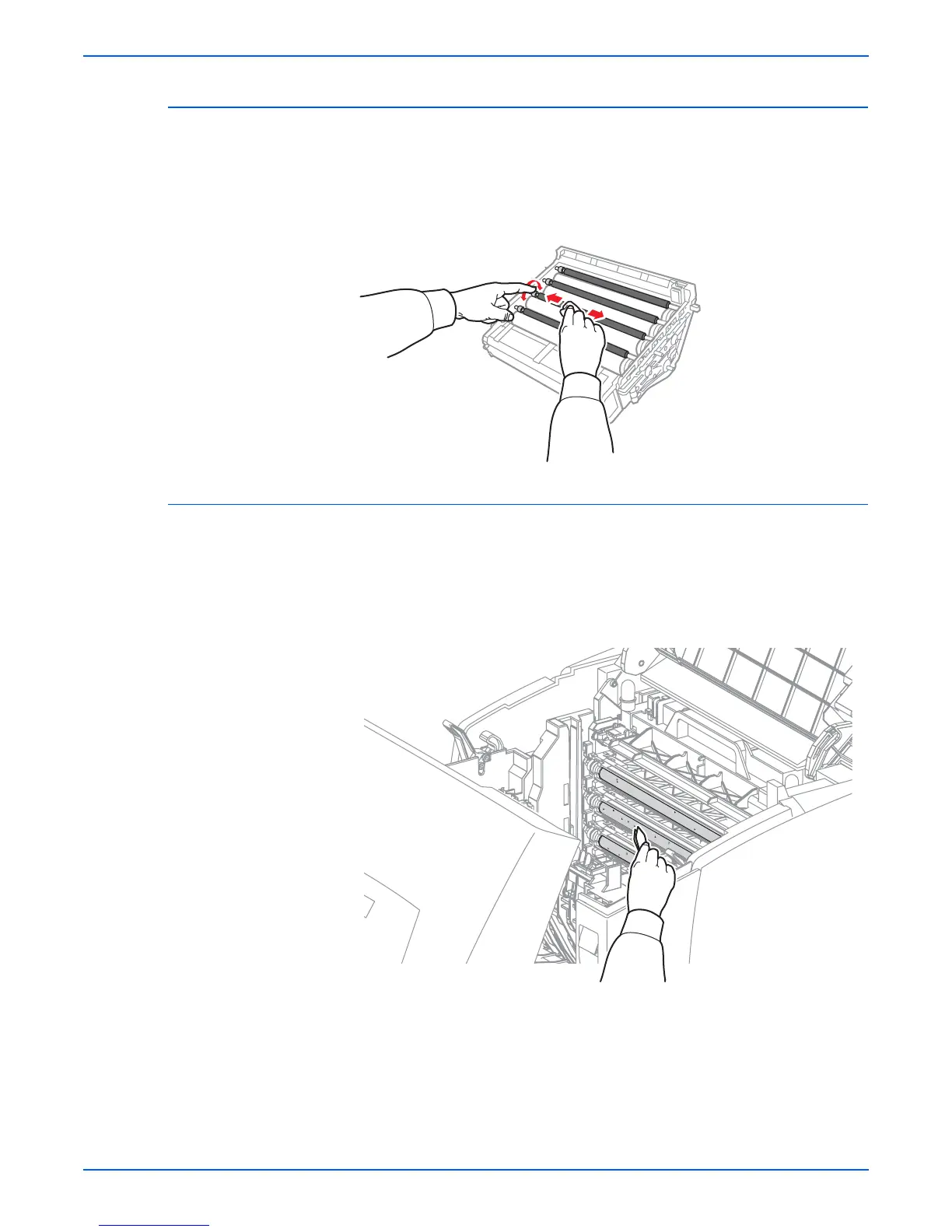

Cleaning the Imaging Unit
1. Open Door A and Door C.
2. Remove the Imaging Unit and place it rollers-up on a stable surface.
3. Working quickly to reduce light exposure, clean each rubber roller of
foreign matter using a lint-free cloth. Thoroughly clean the entire surface
of each roller by rotating the roller using the grey thumbwheel.
Cleaning the Developer Assemblies
1. Open Door A and Door C.
2. Remove the Imaging Unit and place it light-proof container.
3. Using a flashlight, inspect each Developer Roller and gap between each
Developer Assembly. Items, such as foam, paper debris, or hair, can
cause print quality defects. Using tweezers, carefully remove any such
items.
s6360-369
s6360-368
