8-54 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Chute Assemblies
Full Stack Sensor (PL5.4.1)
1. Remove the Front Cover (page 8-12).
2. Unplug connector (P/J134) from the Full Stack Sensor.

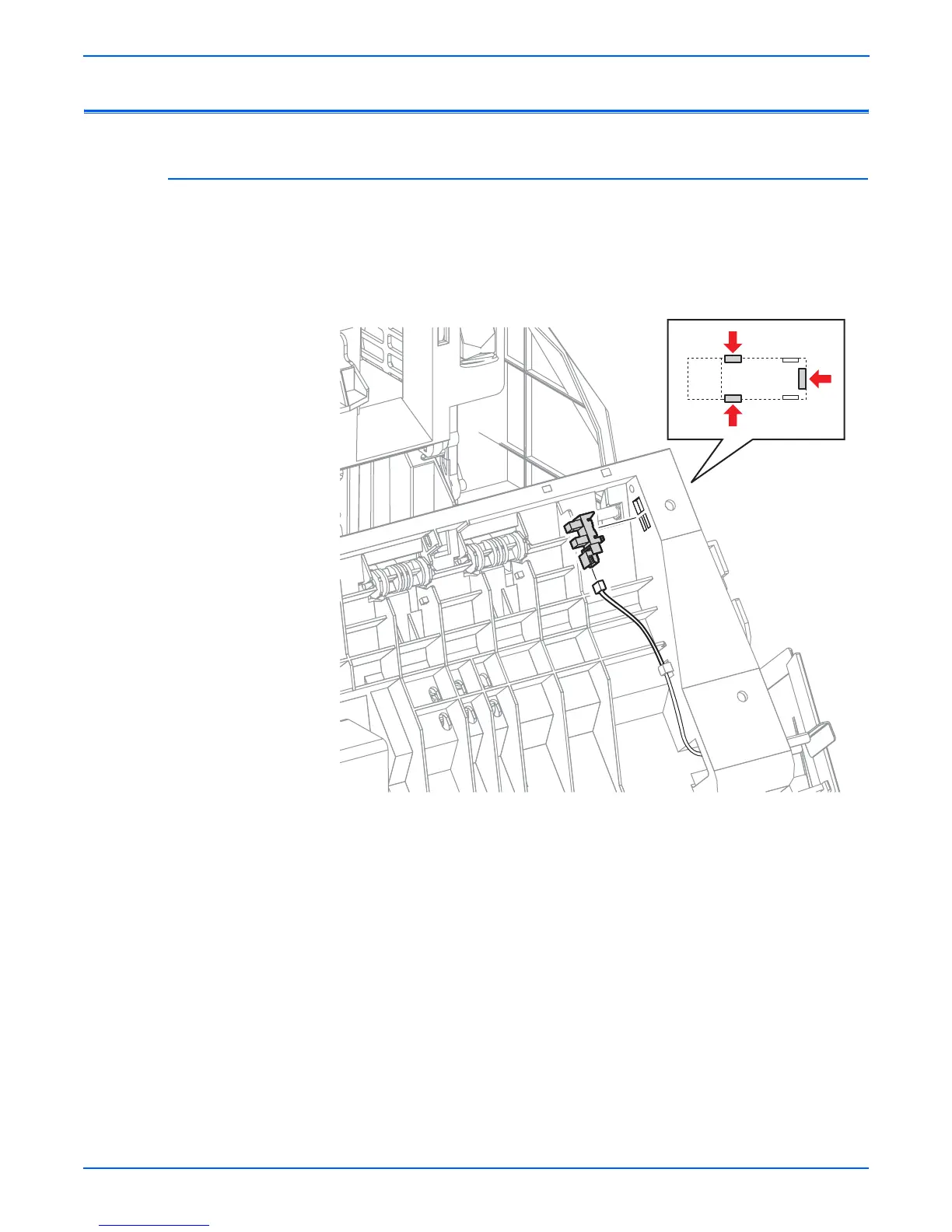

3. Lift the actuator to clear the sensing area and release the 3 hooks that
secure the Full Stack Sensor to the Chute Assembly Out.
s6360-178
To Next Page
