Xerox Phaser 6360

Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-53
Service Parts Disassembly
8. Release the hook that holds the left side Roll Core on the shaft, move the
Roll Core to the left.

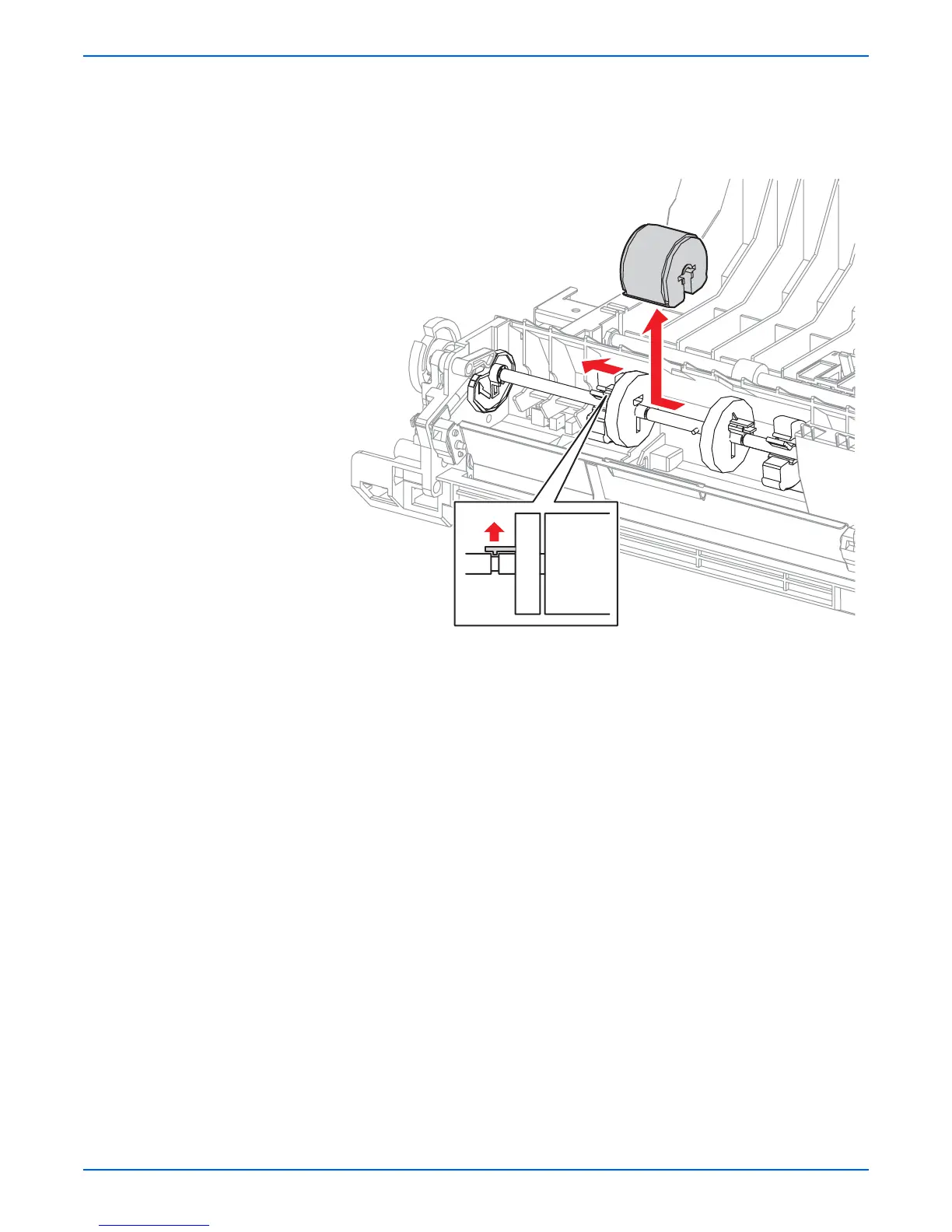

9. Move the Feed Roller left until the pin on the shaft appears and remove
the Feed Roller.
Replacement Note
With the Solenoid engaged, the flat portion of the Feed roller should
face the Bottom Plate.
s6360-177
