Xerox Phaser 6360 Service Manual

2-40 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Theory of Operation

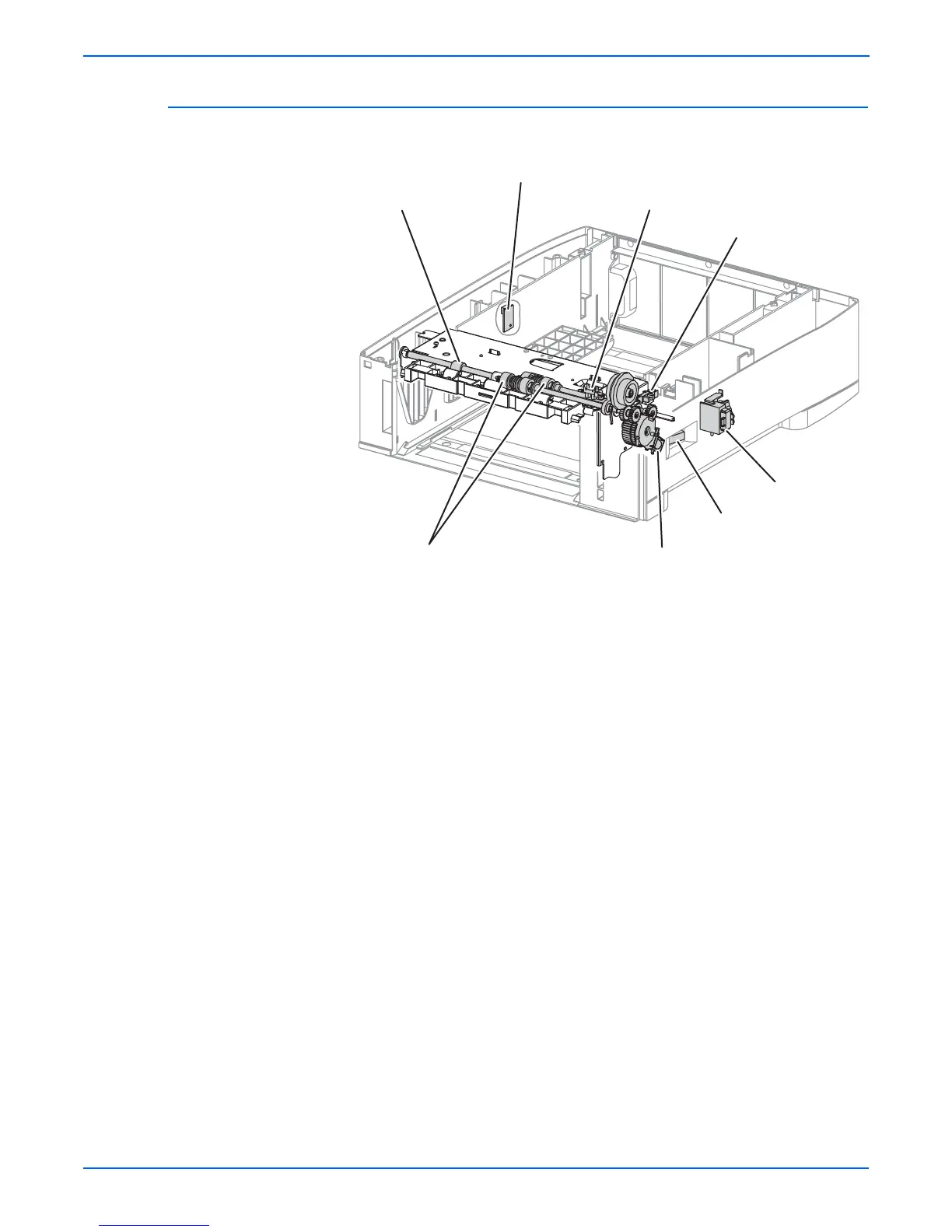

Tray 2 Paper Pick Assembly
■ Temperature/Humidity Sensor
Detects temperature and humidity inside the printer to adjust the charge
voltage (the voltage supplied to the Transfer Roller and the developing
bias).
■ No Paper Sensor
Detects presence or absence of print media in the tray based on the
position of the Actuator.
■ Feed Rollers
When the Feed Solenoid energizes, the Spring Feed force engages the
Gear Feed and the Gear Idler Feed to turn and feed the paper from the
paper tray. This activates the Paper Pick Assembly. After completion of
one turn, determined by a cutout in the Gear Feed, the Gear Feed and the
Gear Idler Feed are disengaged stopping the paper Retard Feed Roller.
This allows one sheet to be fed at a time.
■ Tur n C l u tc h
Transfers the drive energy from the Main Drive Motor to the Turn Roller.
■ Paper Size Switches
Detects print media size using the position of the side and rear guides,
and presence of the paper tray.
■ Gear Feed
See Feed Rollers.
■ Spring Feed
See Feed Rollers.
■ Gear Idler Feed
See Feed Rollers.
s6360-057
Feed Roller
Turn Roller
Low Paper Sensor
Paper Size Switch
Feed Solenoid
Power Switch
No Paper Sensor
Temperature/Humidity Sensor

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
