8-12 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

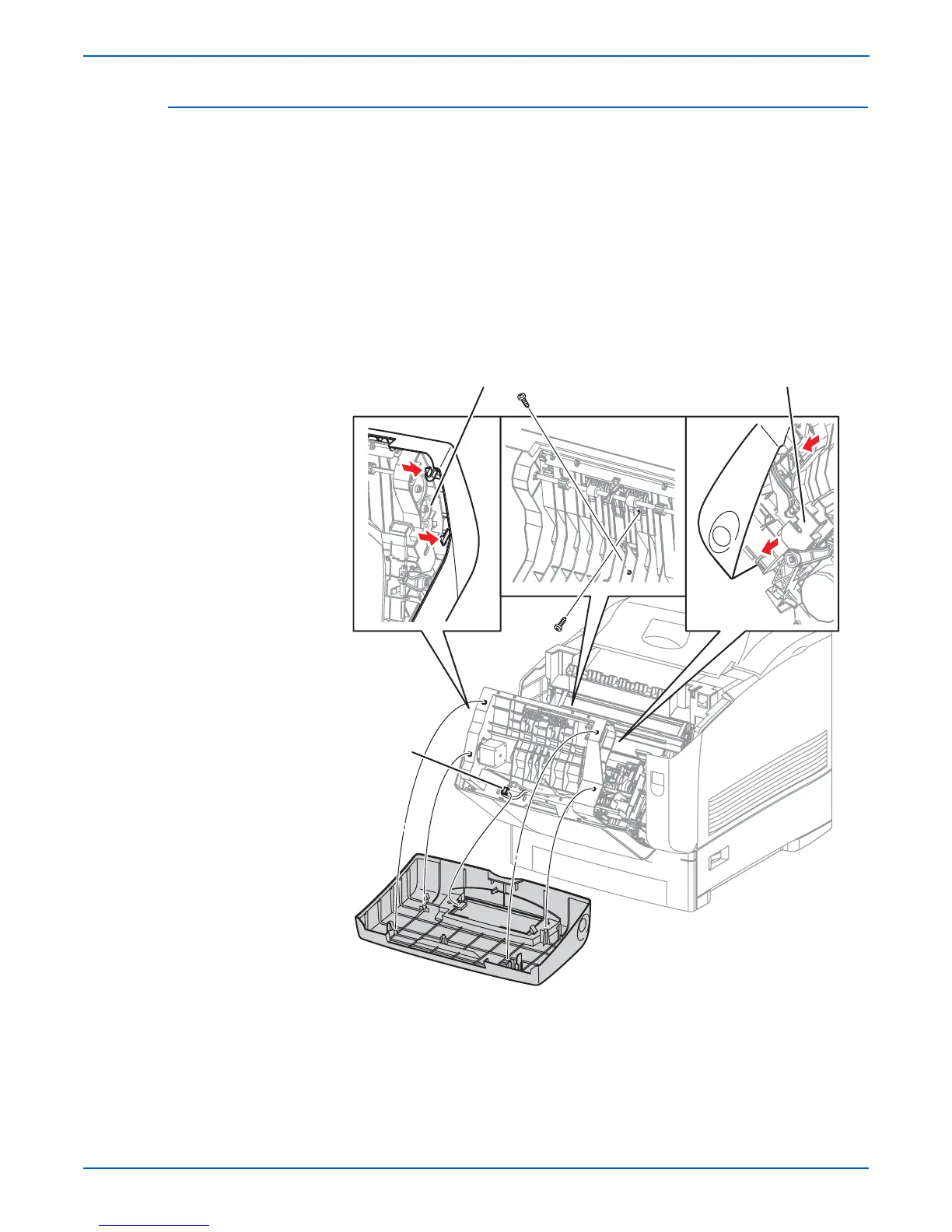

Front Cover (PL1.1.6)
The Control Panel harness is connected between the Front Cover and Door
B. Be careful not damage the harness while removing the cover. Also, the
Upper Exit Cover is not captive to the Chute Assembly Out and can fall as the
Front Cover is removed.
1. Open Door B.
2. Remove 2 screws (self-tapping, plastic 10 mm) that secure the Front
Cover to Door B.
3. Release the 4 hooks that secure the Front Cover to Door B.
4. Unplug connector (P/J220) from the Control Panel. and remove the Front
Cover.
s6360-127
P/J220
Chute Assembly Out Chute Assembly Out
