8-114 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

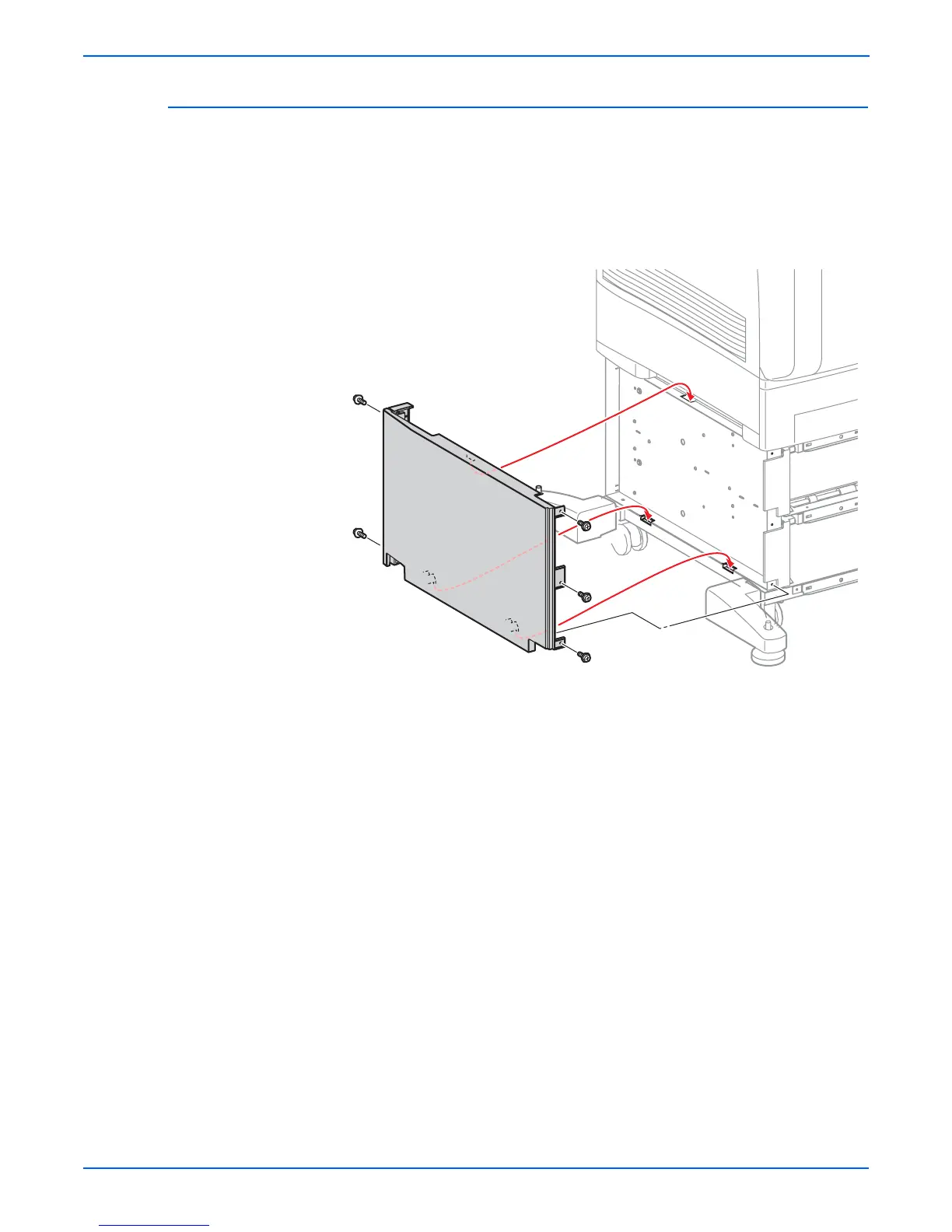

Left Cover (PL12.1.2)
1. Remove the trays.
2. Remove the Front Covers (page 8-113).
3. Remove the 5 screws (metal, flanged, 8 mm) securing the Left Cover.
4. Holding both ends of the cover, lift the cover and move left and right,
flexing slightly, to release the tabs from the holes in the frame.
s6360-251
To Next Page
