General Information
Diagnostics Mode
Service Diagnostics does not provide the utilities to set or clear Metered
NVRAM values. Service Diagnostics does not check these values and does
not display the current status of these values. However, the Configuration
page does identify the printer setting as mentioned above.
N
o
t
e
When replacing the Engine Control Board from a metered printer,
exchange NVRAM devices or use the Save/Restore utilities in Service
Diagnostics to preserve the NVRAM settings. The Mode and PIN-entered
values are not affected by NVRAM reset utilities.

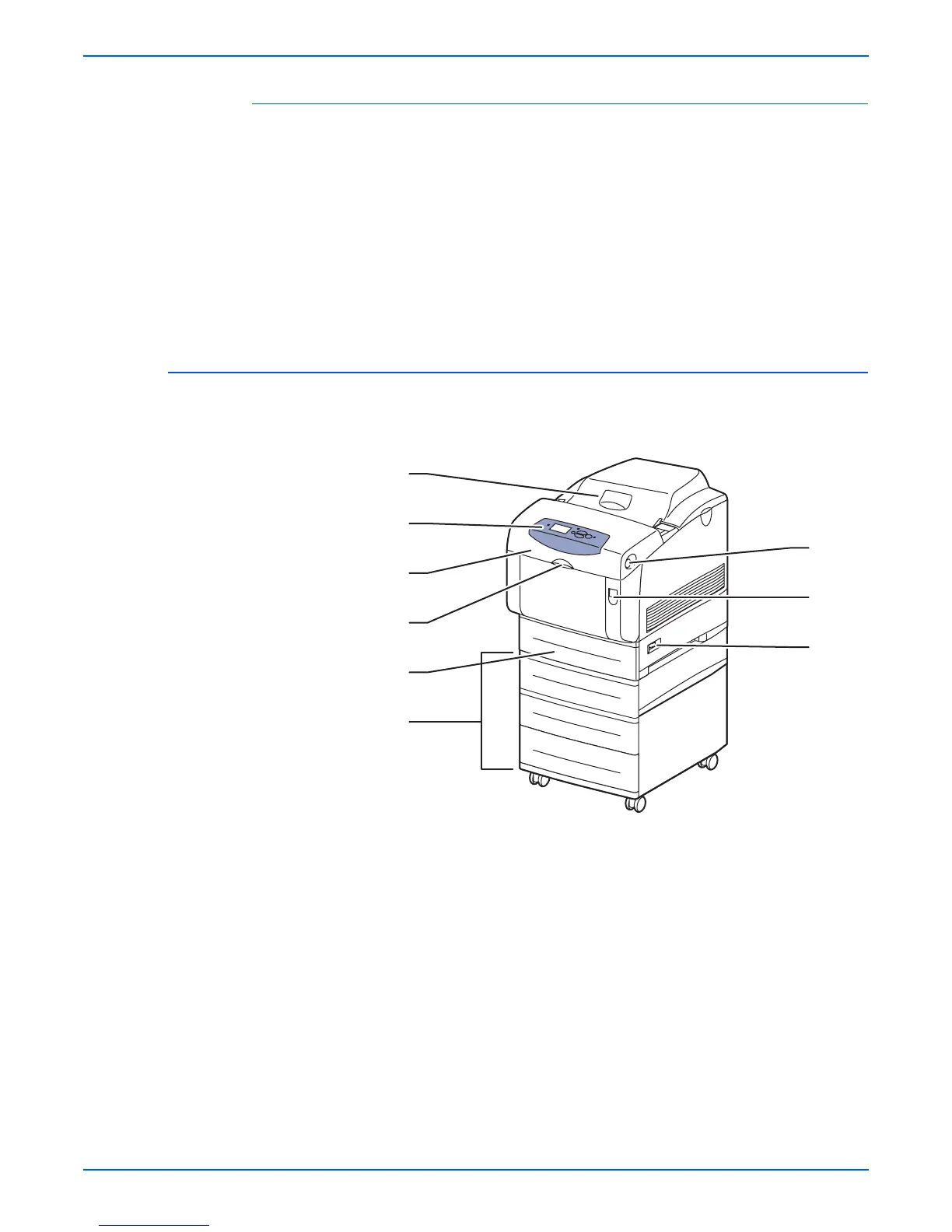

Parts of the Printer
1. Top Cover (Output Tray) 6. Optional Feeders (Tray 3 / Tray 4 and 5)
2. Control Panel 7. Door B Latch
3. Front Cover 8. Door A Latch
4. Tray 1 (MPT) Latch 9. Power Switch
5. Tray 2 (Universal Paper Tray)
s6360-099
1
2
3
4
7
8
9
5
6
