8-140 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
OPTPLG 2 Harness (PL11.1.13)
1. Remove the 550-Sheet Feeder (page 8-135).
2. Remove the Right Cover (page 8-136).
3. Remove the screw (metal, 6 mm) in the Connector Plate and the screw
(self-tapping, plastic 8 mm) in the OPTFDR 1 Board.
4. Remove the assembly from the Feeder.
5. Remove the OPTPLG 2 Harness connector (P/J84) from OPTFDR 1
Board.
6. Release the hooks, at two positions, securing the option plug to the frame.

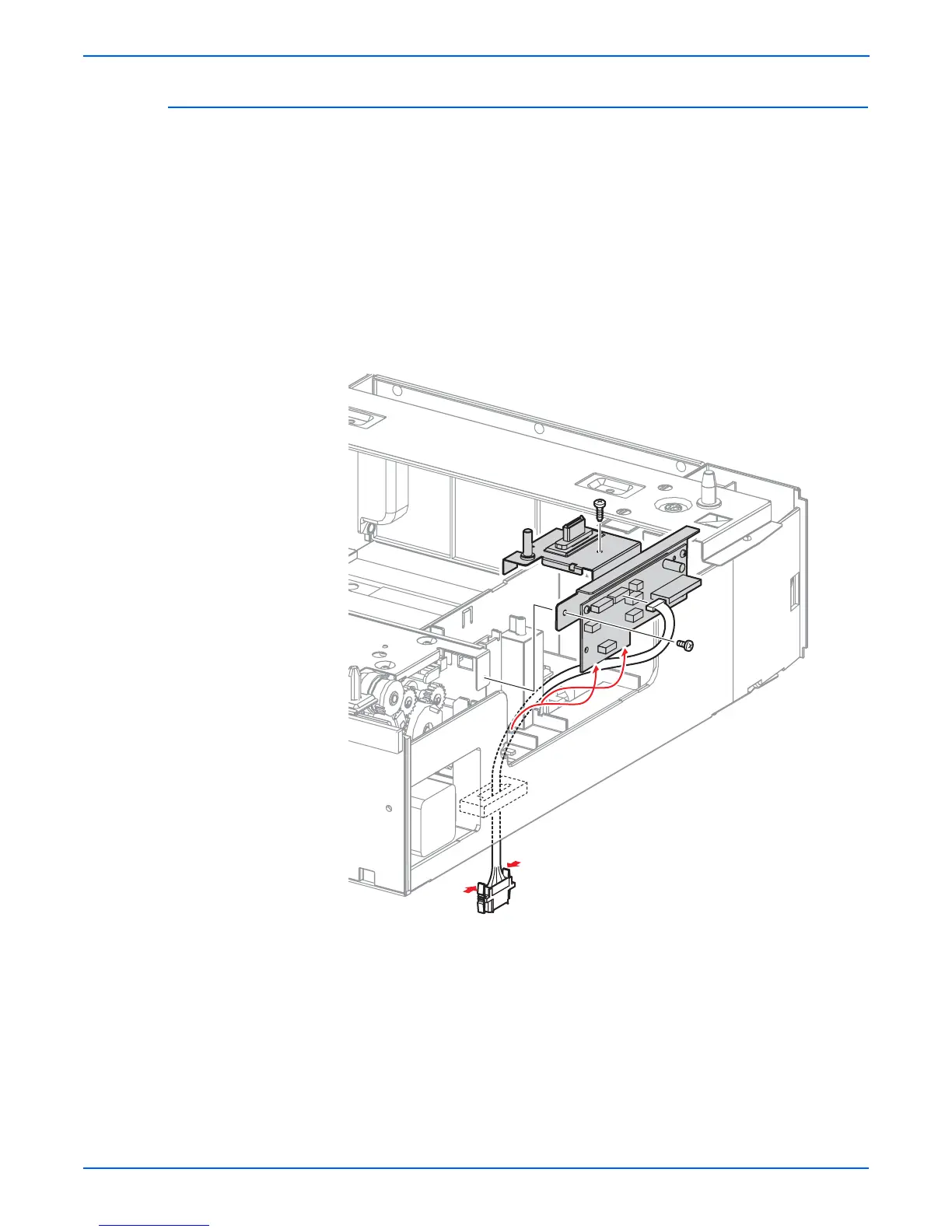

s6360-229
