8-136 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

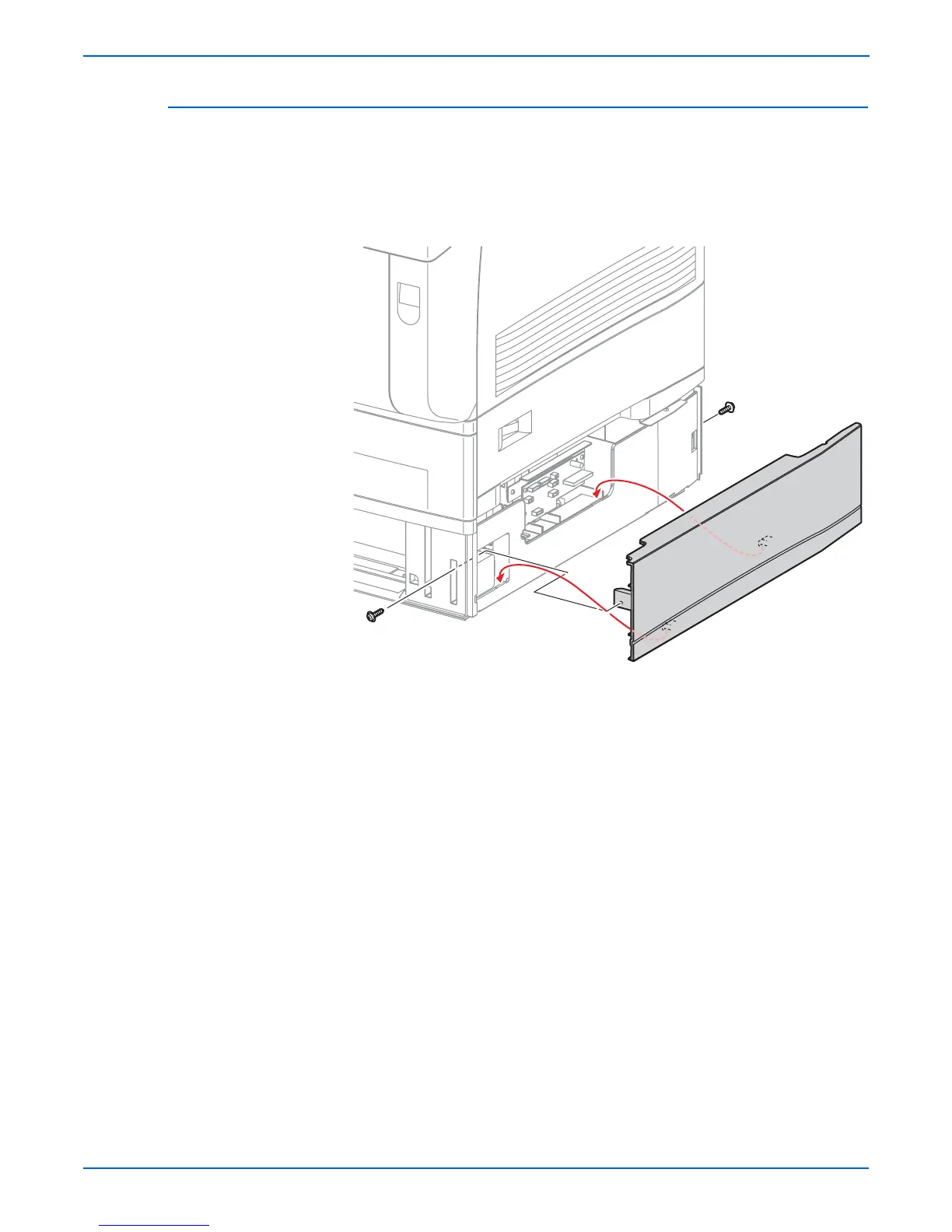

Right Cover (PL11.1.11)
1. Remove Tray 3 from the printer.
2. Remove 2 screws (self-tapping, flanged, plastic, 8mm) that secure the
Right Cover.
3. Release two hooks at the rear to remove the Right Cover.
s6360-228
