Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-77
Service Parts Disassembly

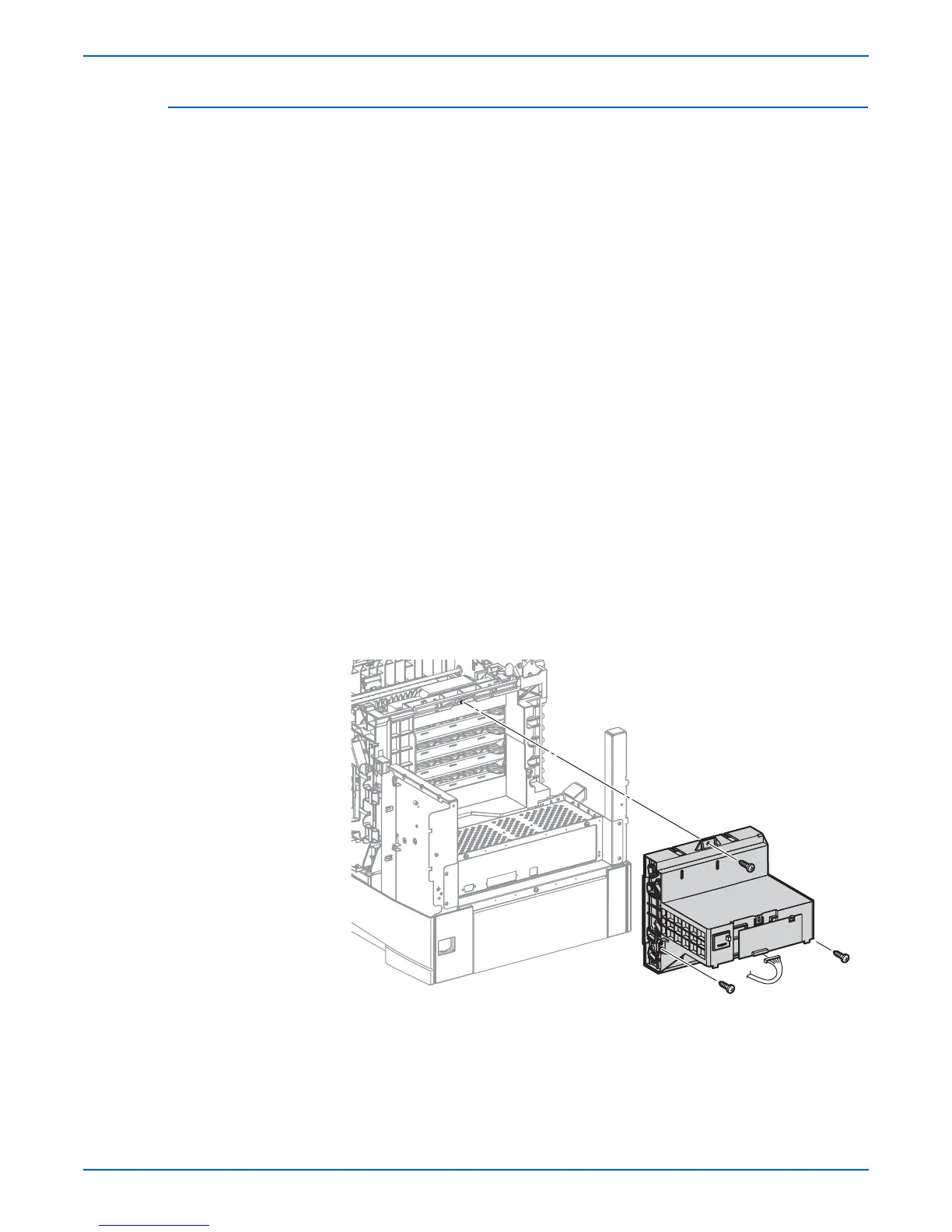

Laser Unit (PL6.1.2)
Access the upper Laser Unit screw by loosening the Toner Cartridge Holder
Assembly and raising it.
Caution
Handle the Laser Unit carefully. Components within the Laser Unit are
sensitive to shock and could be damaged.
1. Remove the Top Main Cover (page 8-11).
2. Remove the Right Side Cover (page 8-14).
3. Remove the Left Side Cover (page 8-15).
4. Remove the Rear Cover (page 8-17).
5. Remove the HVPS (page 8-111).
6. Remove the 2 wires from the harness guide on the CRUM Reader.
7. Disconnect (P/J342) from the CRUM Reader on the left side and remove
the harness from the guide at the forward end of the CRUM Reader.
8. Disconnect the Interlock Switch harness (P/J161) from the LVPS.
9. Remove the LVPS Fan Duct.
10. Loosen the Toner Cartridge Holder Assembly (page 8-91).
11. Unplug connector (P/J151) that is connected to the Laser Unit.
12. Remove 2 screws (self-tapping, plastic 10 mm) that secure the Laser Unit
at each side.
13. Hold the Laser Unit and raise the Toner Cartridge Holder Assembly
enough to remove the Laser Unit upper screw (self-tapping, plastic 10
mm).
14. Move the Laser Unit rearward to remove it.
s6360-194
