Xerox Phaser 6360 Service Manual

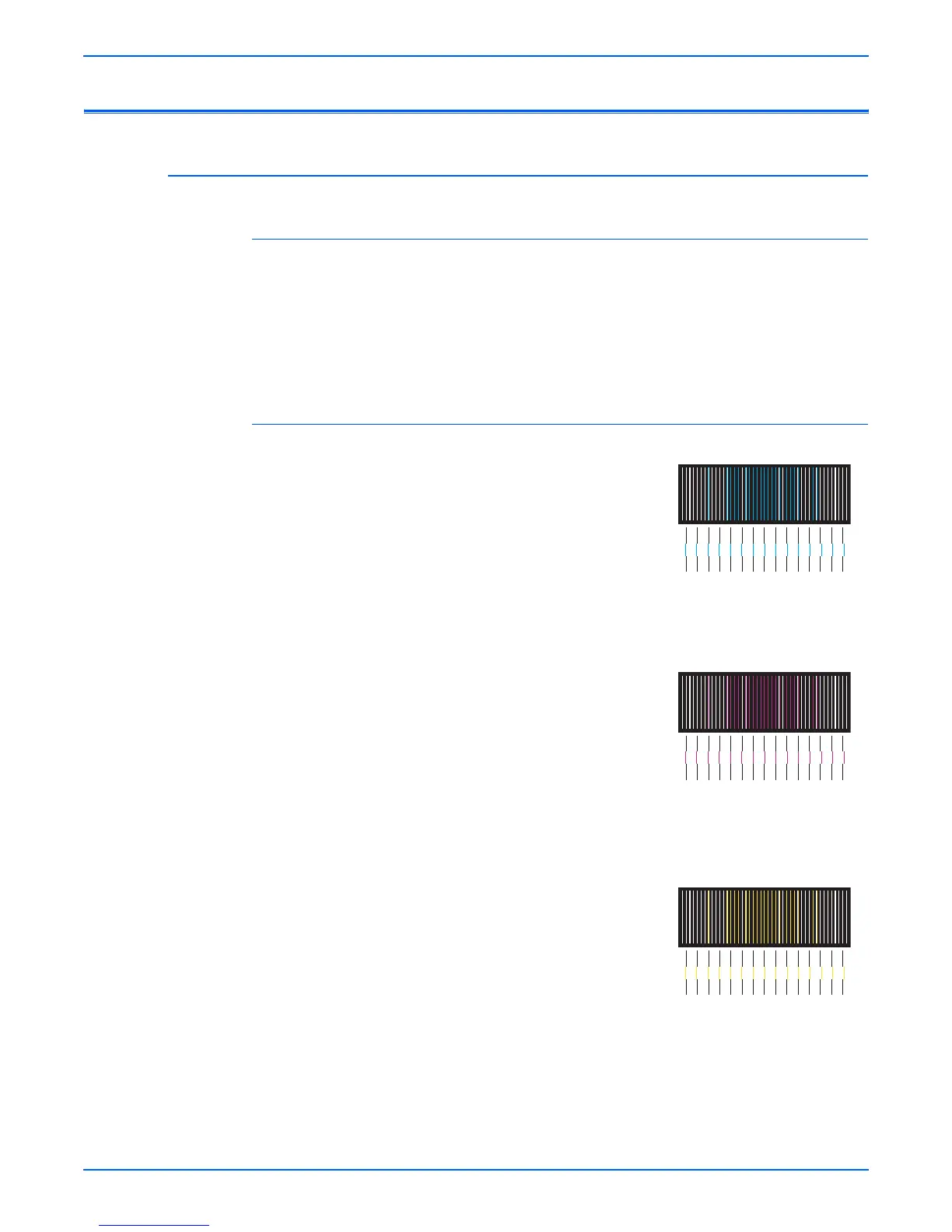

Phaser 6300/6350/6360 Color Laser Printer Service Manual 6-3
Adjustments and Calibrations
Adjustments
Vertical and Horizontal Color Registration
Vertical Color Registration
Vertical color registration adjustment is performed automatically when the
Color Registration page is printed or when a different Imaging Unit is
detected. No process for manual vertical color registration adjustment is
available. See the procedure on
page 5-29 if problems persist with vertical
registration. Vertical color registration settings are stored in the Engine
Control Board’s NVRAM.
Horizontal Color Registration
There are two adjustment options for horizontal
color registration, automatic and manual. The
values for these settings are stored in the
Image Processor Board’s NVRAM.
Automatic registration calibration uses the CTD
(ADC) Sensor to measure the distance
between black in relation to the other colors
placed on the Transfer Roller. The accuracy of
this process is 2400 dpi (four times more
accurate than the manual process). However, if
the horizontal registration alignment is too far
out of adjustment, the automatic process fails
(the sensor does not detect the colors and fails
to correctly align the colors). In this case, adjust
the horizontal registration manually.
The manual registration calibration process has
an accuracy of 600
dpi. Use this procedure
whenever the Laser Unit has been removed or
replaced or the automatic process fails.
The Color Registration menu is used to adjust
the registration of cyan, magenta and yellow
against black. Settings range from -7 to +7 (left
to right). Zero(0) indicates the current color
registration setting.
Print the Color Registration page from the
Troubleshooting --> Print Quality Problems
menu.
s6360-122
-7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7
-7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7
-7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
