8-16 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Door C (PL1.1.8)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Right Side Cover (page 8-14).
3. Remove the Left Side Cover (page 8-15).
4. Open Door A.
5. Open Door C.
6. Pull out the left and right Studs that secure Door C.
7. Spread the bosses on the Developer Frame Assembly Guides that fit in
the left and right notches of Door C and remove the door.
Replacement Note
Before reinserting the Studs, verify that the shoulders on the end of
the pins face out and the Developer Frame Assembly Guide bosses
are in the notches provided in Door C.

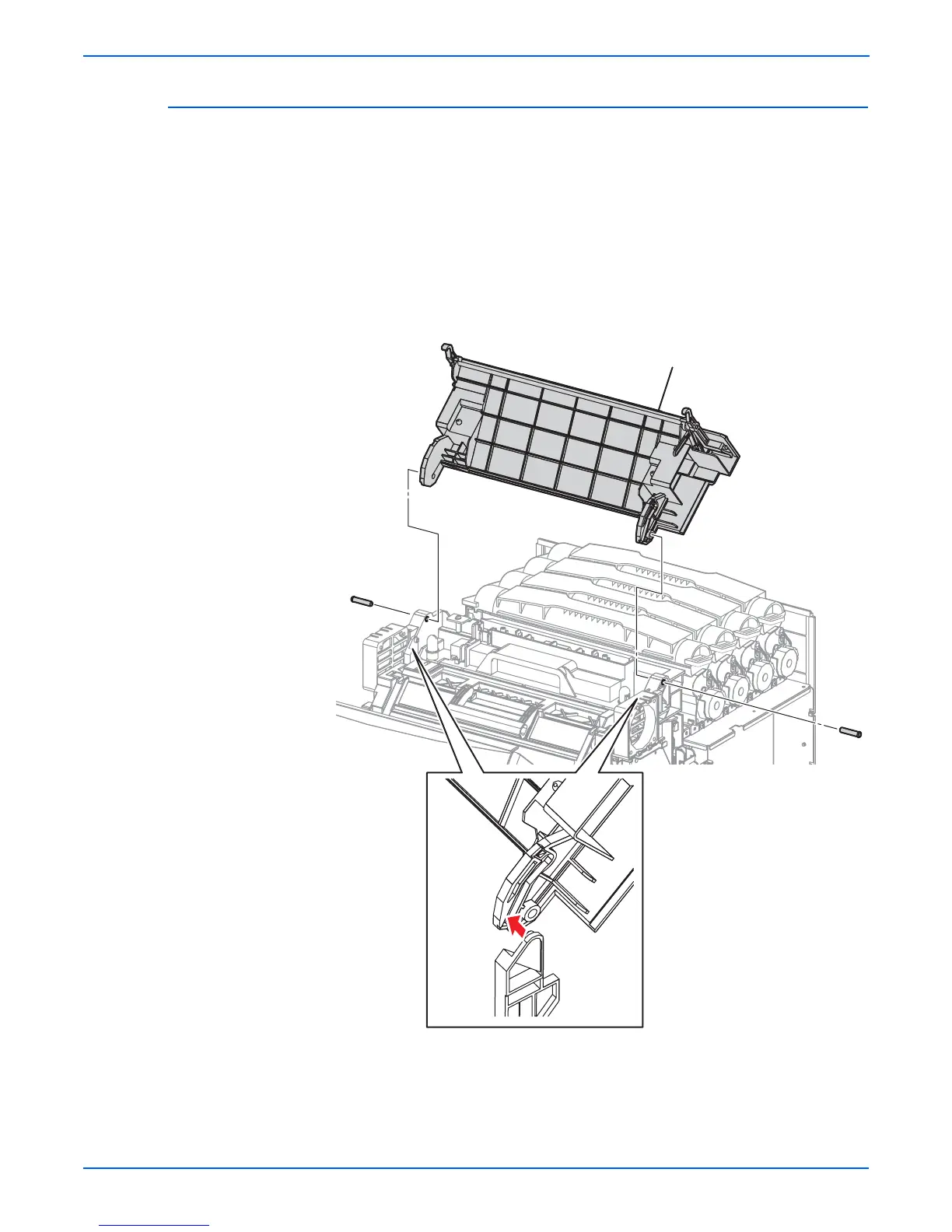

s6360-128
Door C
