Toner Cartridge Holder Assembly

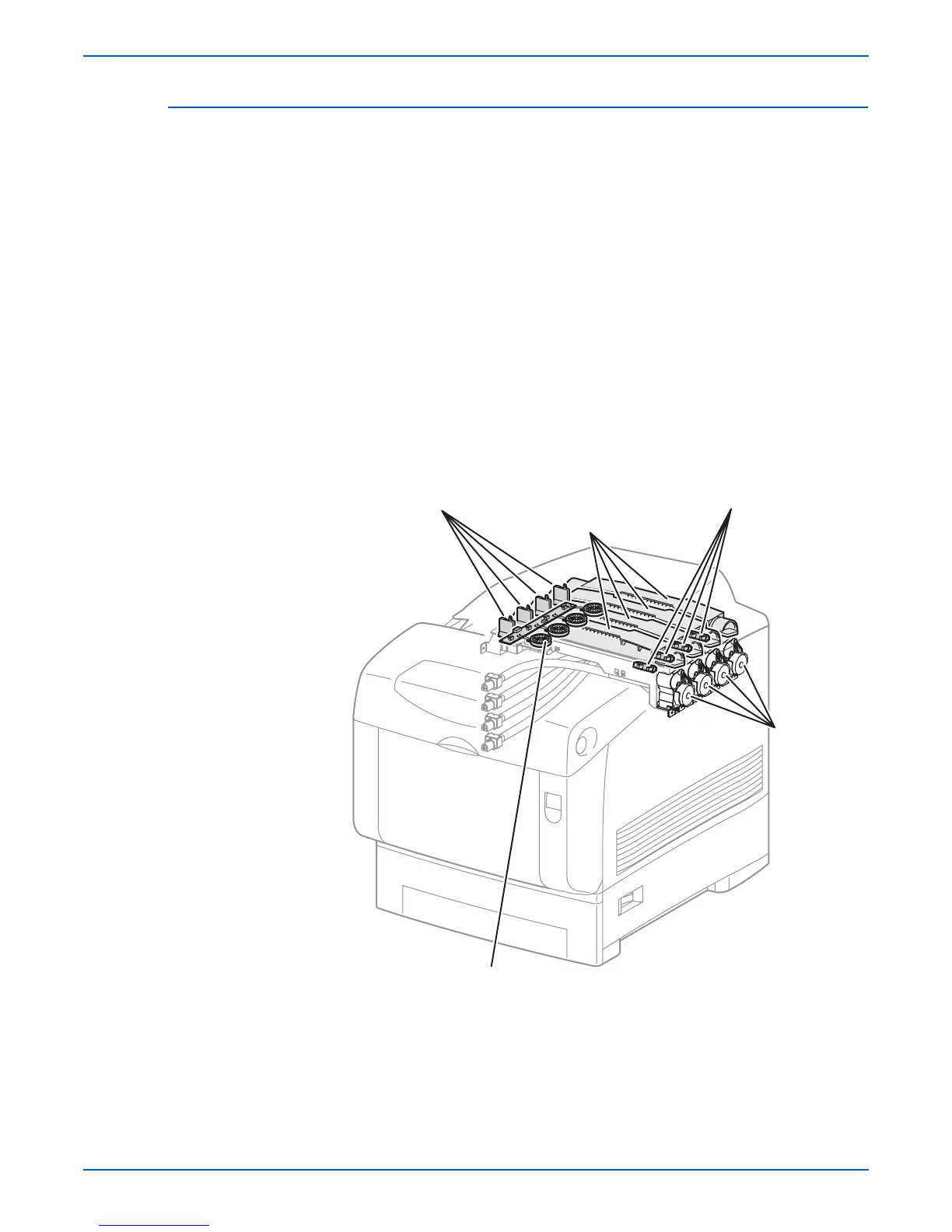

The Toner Cartridge Holder is responsible for transporting toner from the four
Toner Cartridges to the Developer Assemblies. The following figure shows the
location of each major component.
N
o
t
e
The Toner Cartridges, Toner Cartridge Holders and CRUM Reader used
in the 6360 model are different than those used in 6300/6350 models.
However, some sub-components of the holders are common for all
models. Use care when selecting the replacement parent assembly or
component part.
When servicing components of the Toner Cartridge Holders, CRUM
Reader, and cartridge sensors, avoid disconnecting the Auger Tubes from
the Developer Frame Assembly. All repairs, excluding replacement of the
holder itself and removal of the Developer Frame Assembly, are possible
with the Auger Tubes attached. Once the Top Main Cover is removed, re-
install the Toner Cartridges to help avoid toner spills.
■ No Toner Sensors [Y] [M] [C] [K]
Detects level of toner at the mouth of each auger tube.
■ Toner Cartridge In Sensors [Y] [M] [C] [K]
Detects the presence of the Toner Cartridge in the holder.
■ CRUM Reader
Reads the information contained in the Toner Cartridge CRUM.
Toner Cartridge In Sensor
s6360-063
CRUM Reader
Toner Cartridges
Toner Motors
No Toner Sensors
