Theory of Operation
■ Toner Cartridges [Y] [M] [C] [K]
Individual Toner Cartridges containing a toner mixture.
■ Toner Motors [Y] [M] [C] [K]

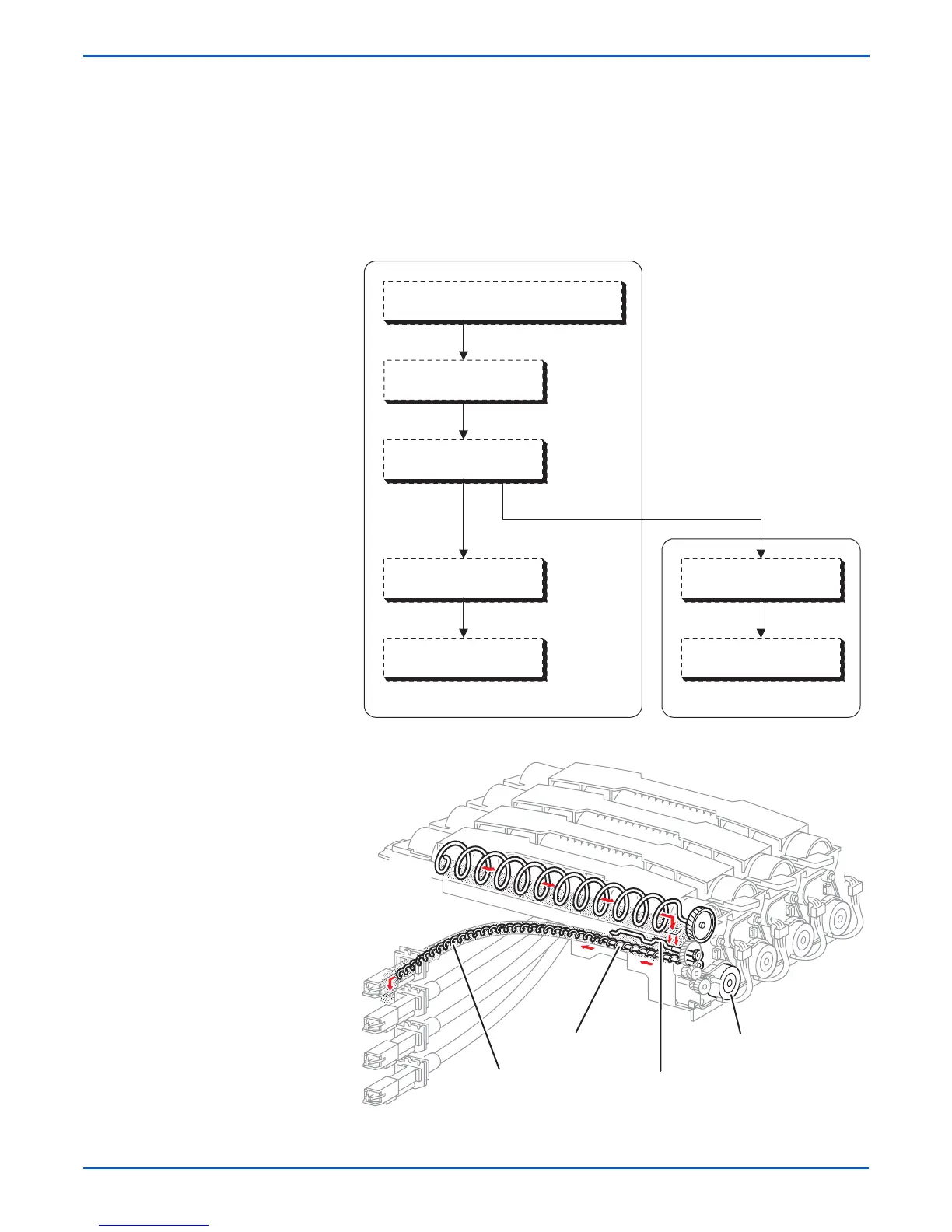

The Toner Cartridge Holder Assemblies each contain a Toner Motor
which drives the Agitator in the Toner Cartridges and the Auger in the
Toner Cartridge Holder, supplying toner through the Auger Tube to the
Developer Assembly.
Toner Cartridge Holder
Toner Motor
Gear
Toner Cartridge
Gear
Auger
Auger
Film Agitator
s6360-046
s6360-345
Agitator Assembly
Toner MotorAuger Assembly
Auger Tube
