8-122 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

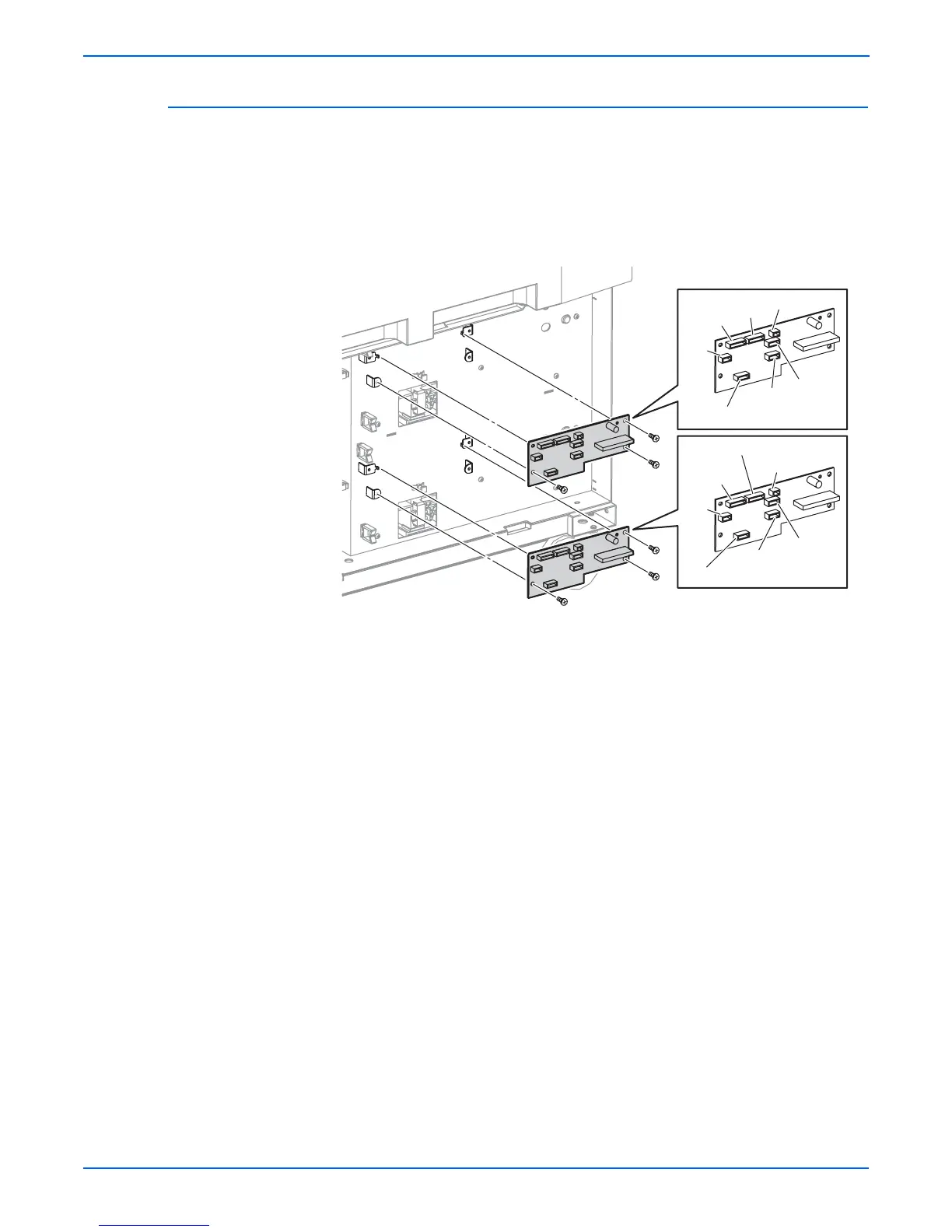

Circuit Board HCF (PL12.3.3)
1. Remove the Front Covers (page 8-113).
2. Remove the Right Cover (page 8-115).
3. Remove all connections to the Circuit Board HCF.
4. Remove the 3 screws (metal, 6mm) that secure the Circuit Board HCF to
the frame, and remove.
P80
P81
P82
P83
P84
P85
P80
P81
P82 Not Connected
P83
P84 Not Connected
P85
P86 Not Connected
P86 Not Connected
s6360-259
