Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-69
Service Parts Disassembly
Fuser Exit Sensor Actuator (PL5.1.2)
Caution
Allow adequate time for the Fuser to cool before servicing the printer.
1. Open Door B.
2. Lift the levers at each end of the Fuser and remove the Fuser.

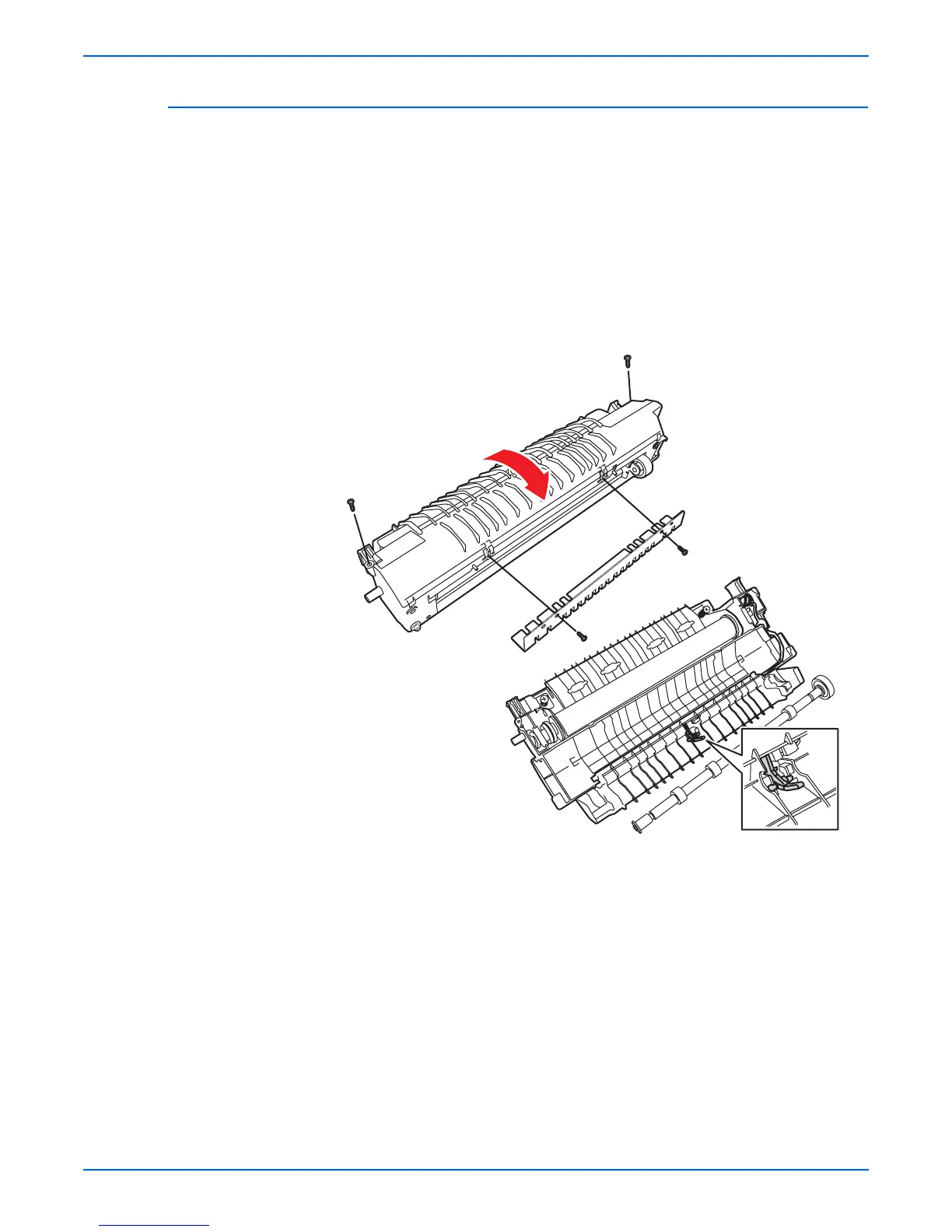

3. Remove the 2 hex-head screws (self-tapping, plastic 10 mm) that secure
the Fuser fingers.
4. Remove the 2 hex-head screws (self-tapping, plastic 10 mm) that secure
the Fuser Cover.
5. Remove the Fuser Exit Roller by unsnapping the shaft from the cover.
Replacement Note
Return the wiring to the recess provided and make sure the Spring is
retained on the Fuser cover. After Fuser replacement, power cycle
the printer.
s6360-366
