8-82 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Developer Assembly (PL7.1.17~20)
Since all four Developer Assemblies are removed in the same manner, use
this procedure for any of the four colors.
o
e
Toner will spill from the rear of the Developer Frame Assembly. Keep the
assembly vertical to reduce the amount of Toner spillage. Prepare a
location to replace the Developer Assemblies by covering a flat surface
with paper or other material to capture Toner spilled during the
replacement procedure. Following the repair, use an approved Type
II
Toner Vacuum to clean spilled toner from within the printer and around the
work area.
1. Remove the Top Main Cover (page 8-11).
2. Remove the Left Front Cover (page 8-19).
3. Remove the Left Side Cover (page 8-15).
4. Remove the HVPS (page 8-111).
5. Remove the Developer Frame Assembly (page 8-79).

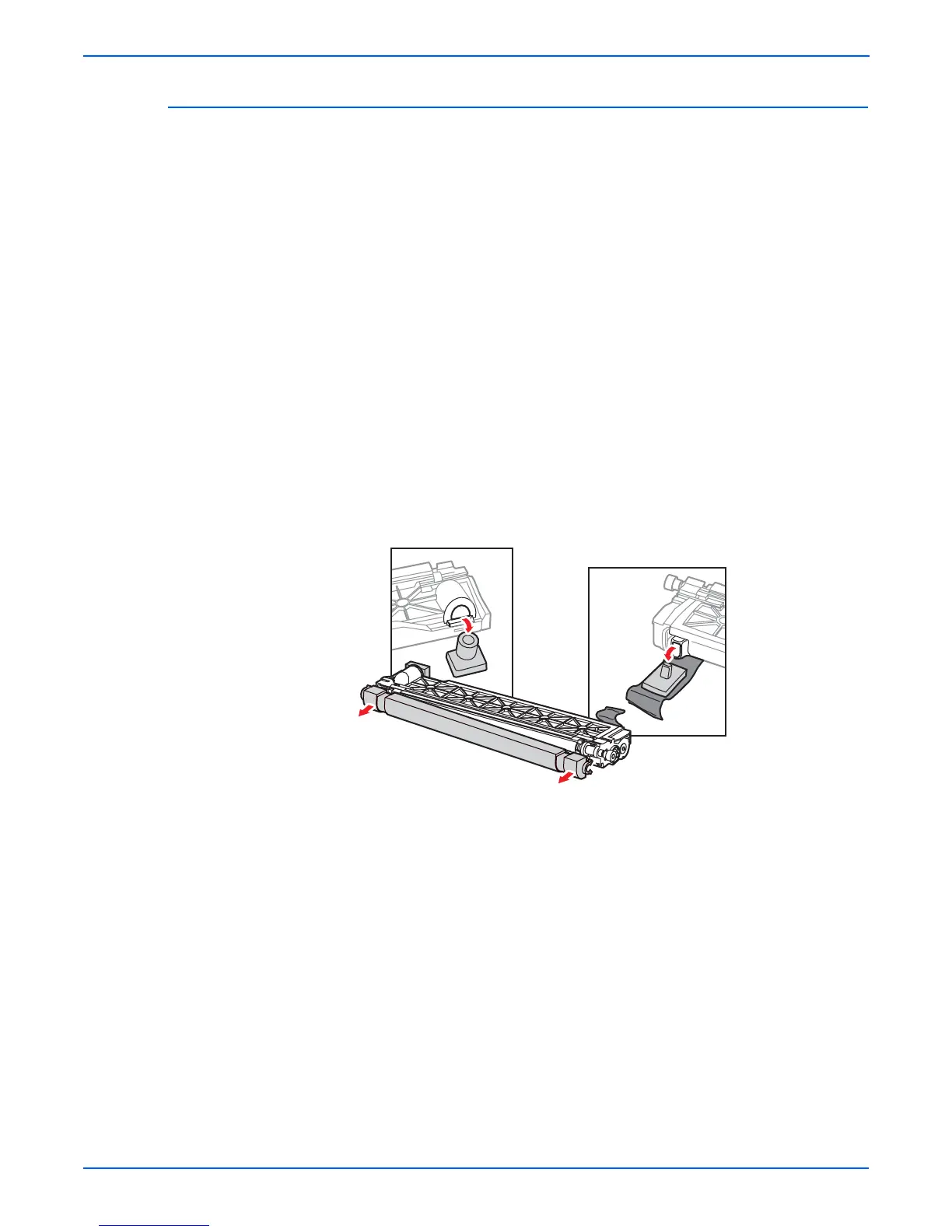

6. Open the replacement Developer Assembly packaging and transfer the
shipping plugs and roller cover from the new assembly to the old. Use the
plugs, cover, and packaging to repack the old part for return.
s6360-379
