Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-83
Service Parts Disassembly

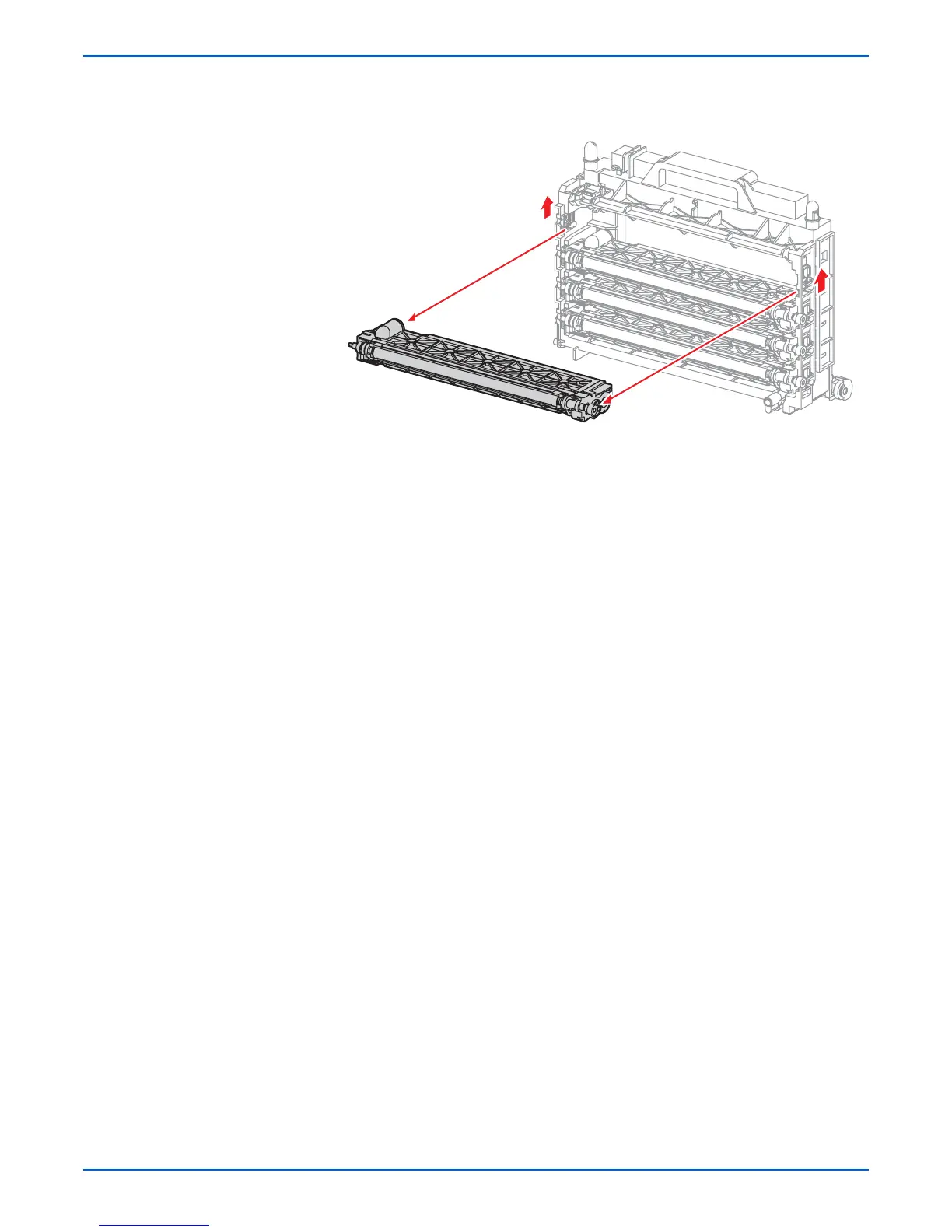

7. Release the left and right stoppers located on the Developer Frame
Assembly and remove the Developer Assembly.
Replacement Note
Inspect each Developer Assembly slot prior to installing the
replacement to ensure the left and right tracking spring (PL7.1.13) is
securely attached to the Developer Frame Assembly. There should be
2 tracking springs per Developer Assembly.
Be sure to carefully match the colors of the 4 toner nozzles to the
correct positions and that each nozzle is locked to the Developer
Frame Assembly before replacing the covers.
s6360-198
To Next Page
