Xerox Phaser 6360 Service Manual

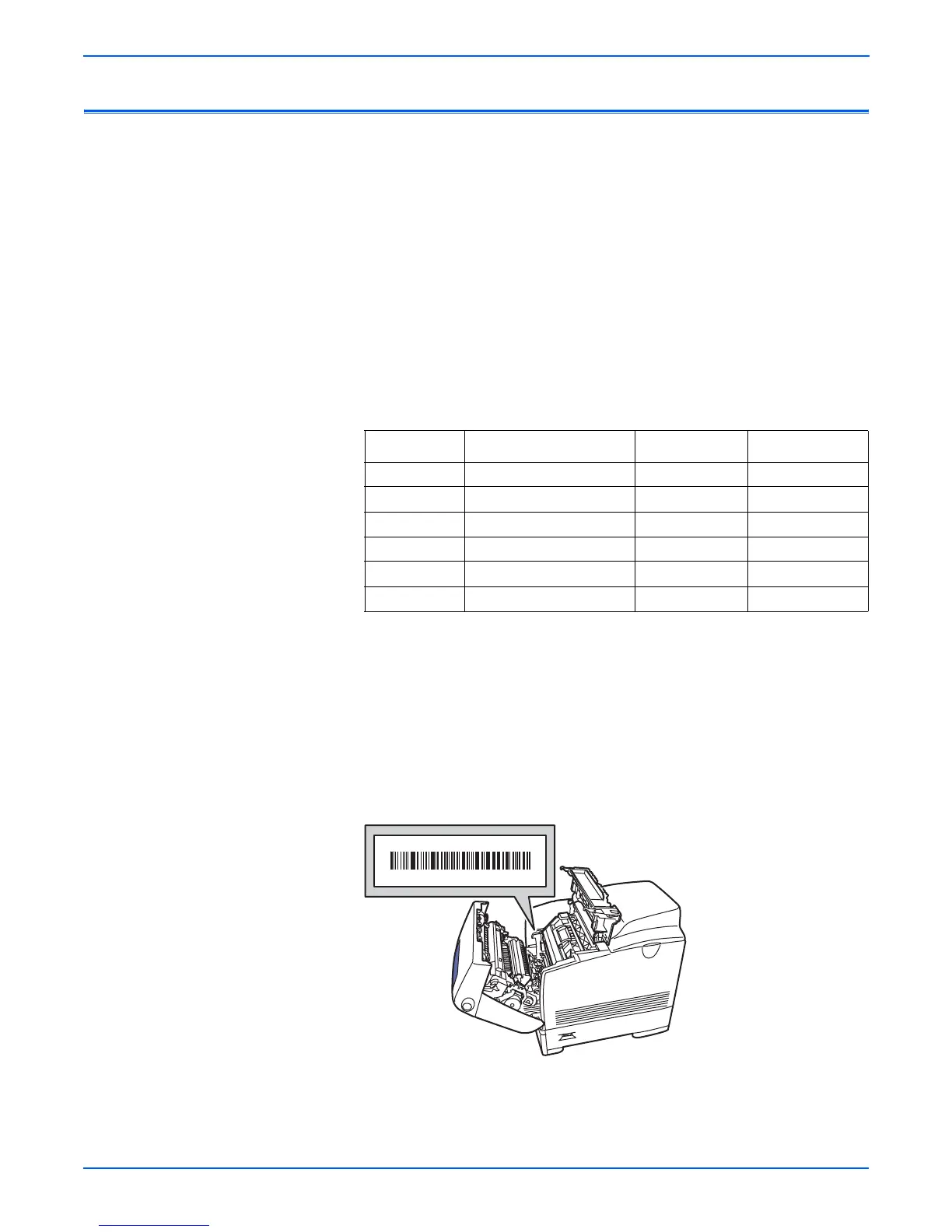

9-2 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Parts List
Serial Number Format
Changes to Xerox products are made to accommodate improved components
as they become available. As improvements are made, part numbers may
change from those appearing in this section. To get the latest part, provide the
following information when ordering:
■ Component's part number
■ Product type or configuration number
■ Serial number of the printer
The serial number is coded as follows:
■ The text “S/N” followed by the serial number in the barcode.
■ The barcode does not include a field identifier.
■ The nine digit serial number format PPPRSSSSS where:
PPP - Is the alphanumeric Product Code
R - Is the numeric revision digit. Changes at major product updates or
when
the serial number is reset to a starting value or (30001, 60001, or 90001).
SSSSS - Is the five digit numeric serial number.
For example:
S/N WHH453072
WHH = Product code for the 6300, configuration N or DN, 110 V Printer
4 = Revision level
53072 = Serial number for 6300 N
Product Configuration Voltage Product Code
6300 N, DN 110 V WHH
6300 N, DN 220 V WHK
6350 DP, DT, DX 110 V WNN
6350 DP, DT, DX 220 V WNP
6360 N, DN, DT, DX 110 V DBY
6360 N, DN, DT, DX 220 V DCA
s6360-352
S/N: WHH453072
Nov, 2006

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
