8-124 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Paper Pick Assembly HCF T1 (PL12.4.1)
1. Separate the 1100-Sheet Feeder from the printer (page 8-112).
2. Remove the Front Covers (page 8-113).
3. Remove the Right Cover (page 8-115).
4. Remove the Left Cover (page 8-114).
5. Remove the Feeder Chute (page 8-117).
6. Remove the Upper Chute (page 8-33).

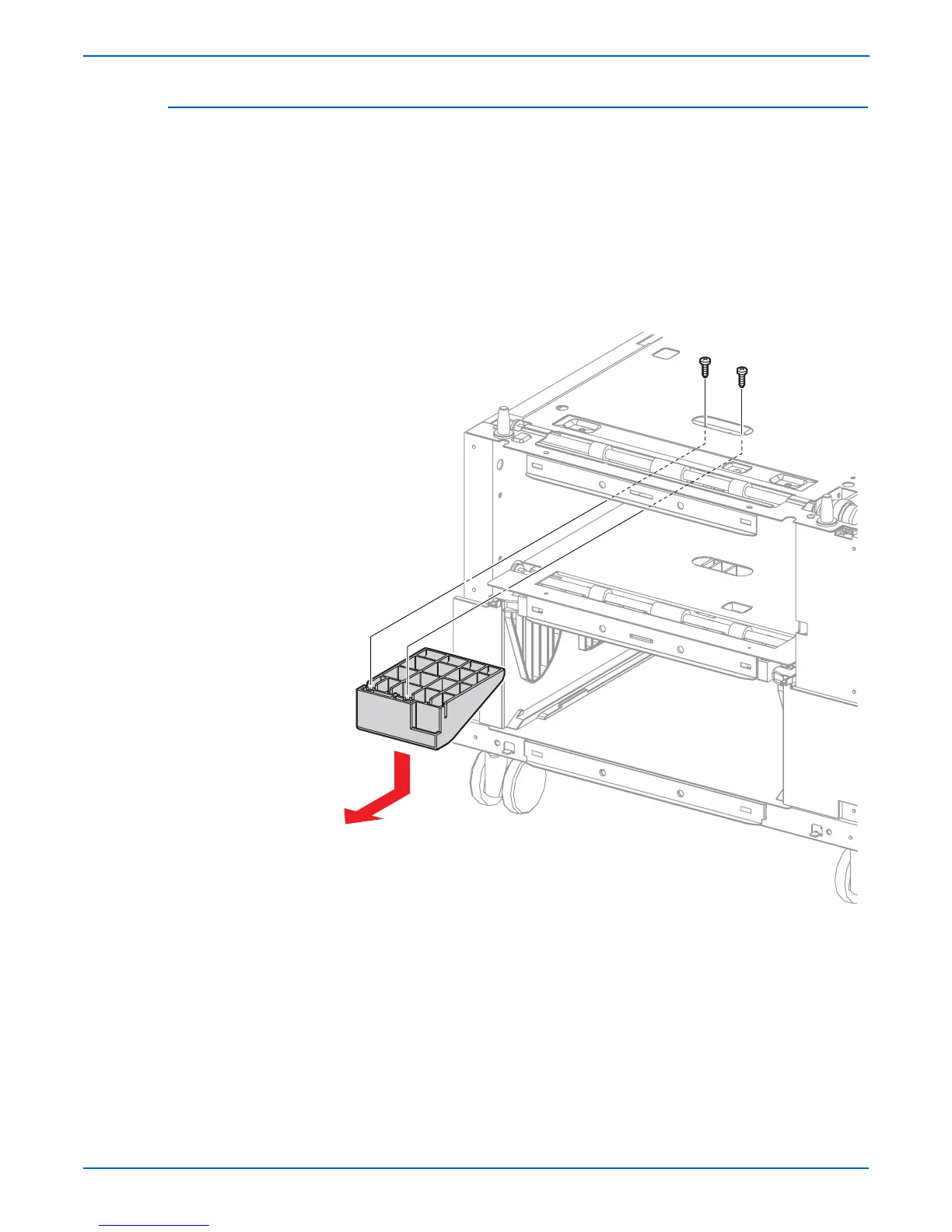

7. Remove 2 screws (self-tapping, plastic 8 mm) that secure Paper Guide to
the Paper Pick Assembly HCF T1 and remove the Paper Guide.
8. Remove the upper Left Feeder Assembly (page 8-118).
9. Remove the upper Right Feeder Assembly (page 8-119).
10. Remove the Drive Assembly (page 8-123).
11. Disconnect the connector (P/J81) from the upper Circuit Board HCF, and
remove the harness from clamp.
12. Disconnect the No Paper Sensor connector (P/J822) on upper Paper Pick
Assembly.
13. Disconnect the Feed Solenoid connector (P/J824) and remove the
harness from the clamp.
s6360-262
To Next Page
