Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-119
Service Parts Disassembly

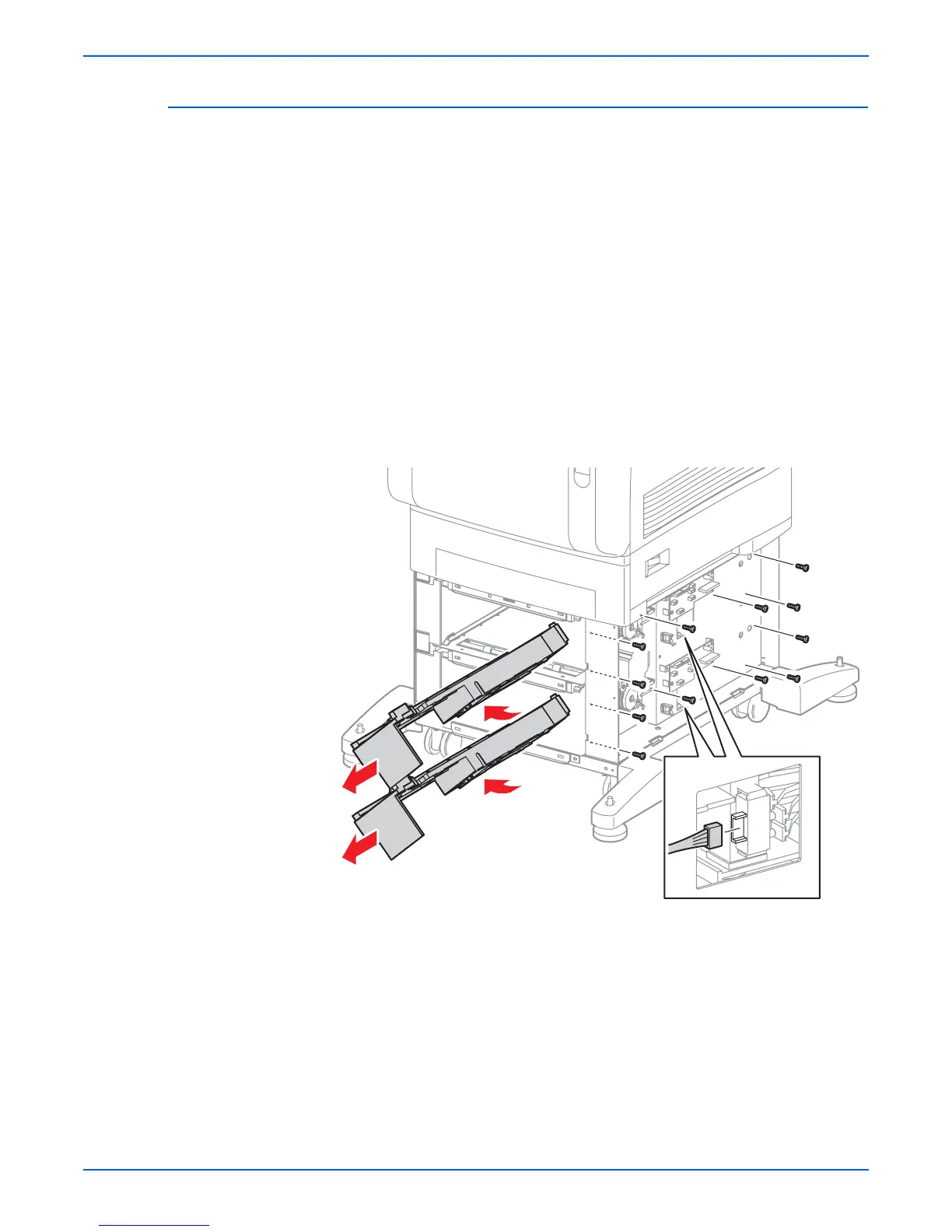

Right Feeder Assemblies (PL12.2.4)
Caution
Move the sensor flags upwards before attempting to remove the feeders.
1. Remove the Front Covers (page 8-113).
2. Remove the Right Cover (page 8-115).
3. Remove the Feeder Chute (page 8-117).
4. Remove the Tray Rear Cover (page 8-23).
N
o
t
e
Perform Step 5 only when removing the upper Right Feeder Assembly.
5. Remove the Drive Assembly (page 8-123).
6. Remove the Paper Size Switch connector (P/J821).
7. Remove 6 screws (self-tapping, plastic 8 mm) that secure the Right
Feeder.
8. Tilt the Right Feeder Assembly and remove it from the front.
Note
Replace the Upper Right Feeder before replacing the Drive Motor.
s6360-255
