Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-97
Service Parts Disassembly
Fuser Drive Assembly (PL5.2.25)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Right Front Cover (page 8-18).
3. Remove the Right Side Cover (page 8-14).

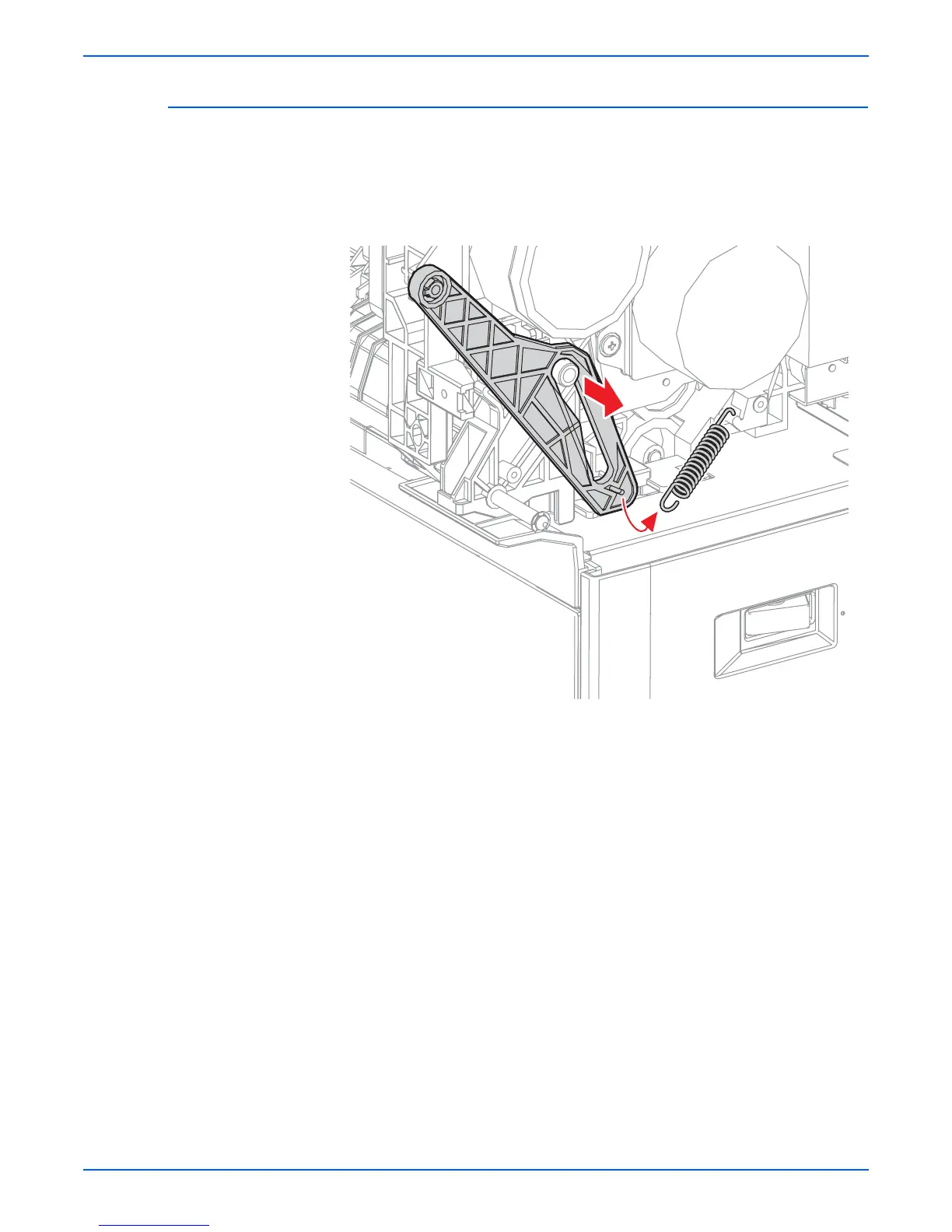

4. Remove the Link Arm Spring and Link Arm.
s6360-169
To Next Page
