8-110 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

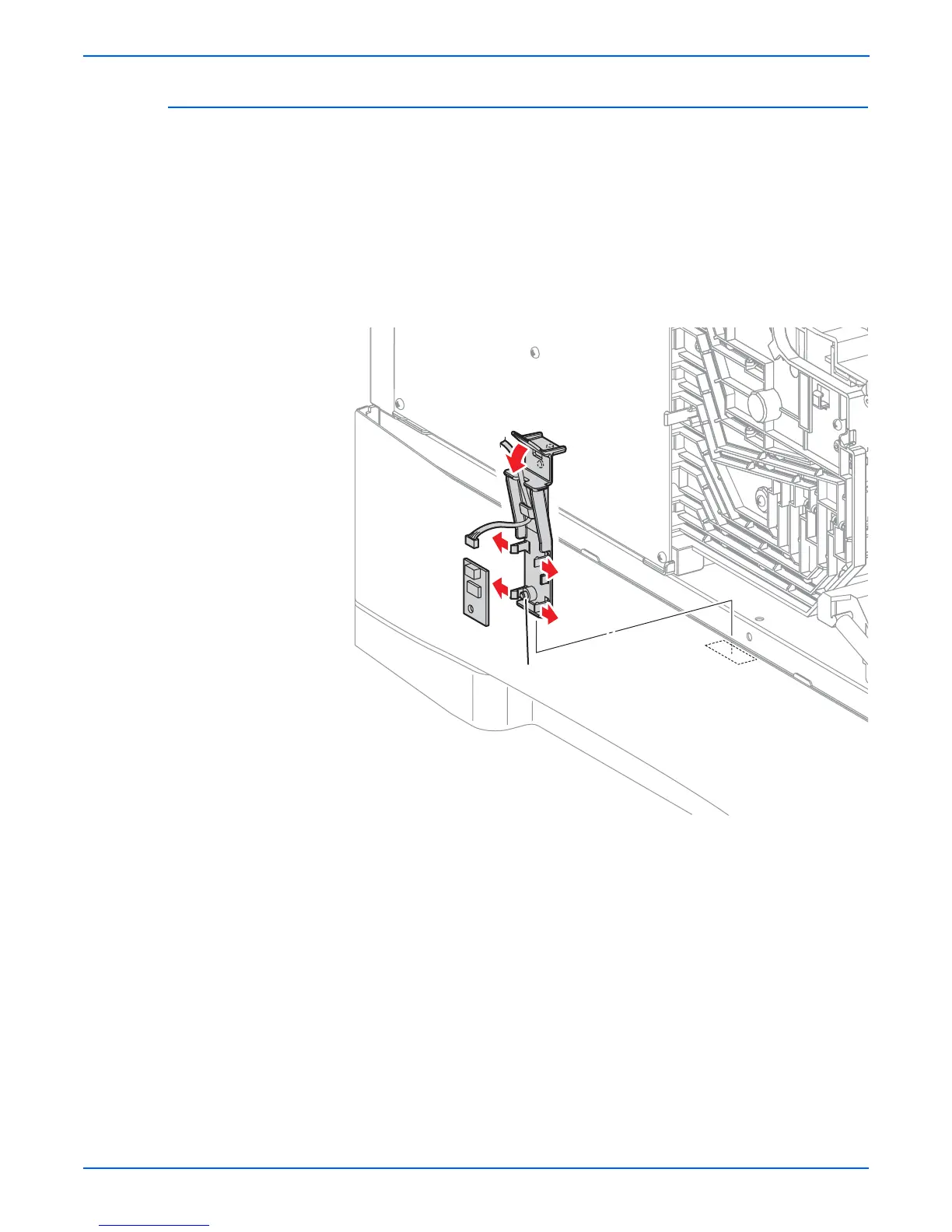

Temperature/Humidity Sensor (PL9.1.20)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Left Side Cover (page 8-15).
3. Press down the knob mounted on the left side of the printer to release the
bracket that holds the sensor.
4. Lift the bracket from the printer chassis.
5. Release the 4 hooks that secure the Temperature/Humidity Sensor to the
bracket and remove the sensor.
6. Unplug the Temperature/Humidity Sensor connector (CN1).
s6360-2
CN1
Boss
To Next Page
