Xerox Phaser 6360 Service Manual

Phaser 6300/6350/6360 Color Laser Printer Service Manual 2-7
Theory of Operation
Printer Controls
Paper Size Control
The paper size detection for Trays 2, 3, 4, and 5 is determined by the Paper
Size Switch, composed of three microswitches, located in each paper tray
slot. The switch condition is set by moving the paper guide in the tray. This in
turn sets the plastic actuators on the side of the paper tray to a specific
position that activates the switch combination indicating the media size.
Selective Control; Paper Pick
Unless changed in printer setup, the default tray is Tray 2. Trays in the optional
1100-Sheet Feeder are identified as Tray 3 and Tray 4. The tray in the optional
550-Sheet Feeder is identified as Tray 3. If both optional Feeders are
installed, the 550-Sheet Feeder tray is identified as Tray 3, and the trays of the
1100-Sheet Feeder are identified as Tray 4 and Tray 5.
N
o
t
e
The Phaser 6300/6350/6360 printer supports the installation of only one
550-Sheet Feeder. Attempting to install a second results in an
unsupported configuration error.
Laser Light Intensity Control
The Laser Unit in the Phaser 6300/6350/6360 printer has four laser diodes:
one each for yellow, magenta, cyan, and black. The diode control circuitry
adjusts the light intensity for each color automatically. Image data is
transmitted to the laser diodes in the Laser Unit as digital signals. The laser
diodes convert the image data from digital signals to optical signals. The
Laser Unit monitors and adjusts the intensity of the laser beams to attain a
stable electrostatic image.

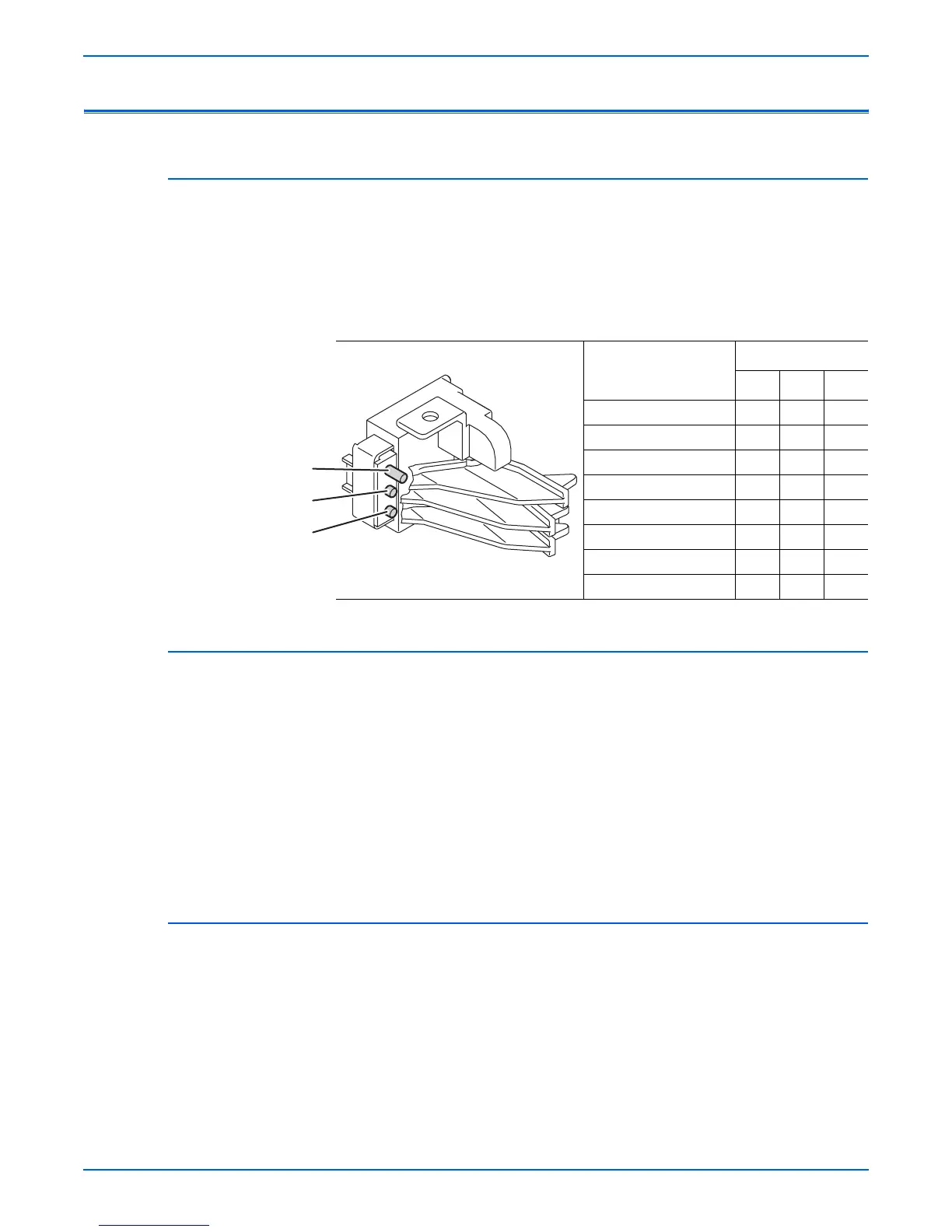

Paper Size Switches Indicated as SW1, SW2, and SW3
Paper Size
Paper Size Switch
SW1 SW2 SW3
Legal 14" On On On
US Folio (Legal 13") On On Off
Executive On Off On
B5 On Off Off
A4 Off On On
A5 (Tray 1(MPT) only) Off On Off
Letter Off Off On
No Tray Off Off Off
SW 1
SW 2
SW 3
s6360-385

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
