Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-21
Service Parts Disassembly
Universal Tray

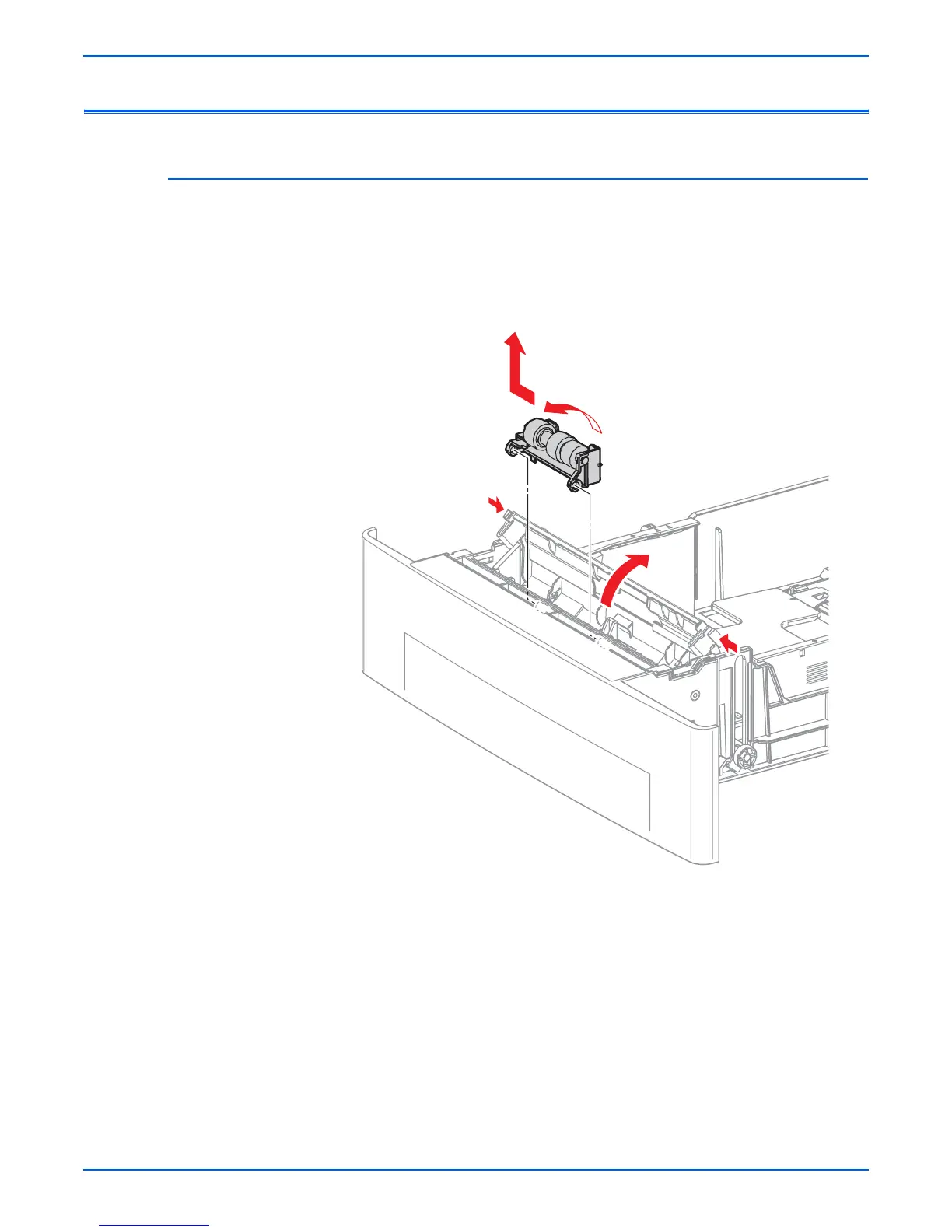

Retard Assembly (PL2.1.12)
1. Remove the tray.
2. Release the 2 tabs at the left and right of the Turn Chute by pushing
inward and open the chute.
3. Rotate the Retard Holder 90 degrees.
4. Slide the Retard Assembly to the left to remove it from the 2 bosses, and
then lift upward.
s6360-138
