Xerox Phaser 6360

Phaser 6300/6350/6360 Color Laser Printer Service Manual 2-19
Theory of Operation
Sensors in the Paper Path

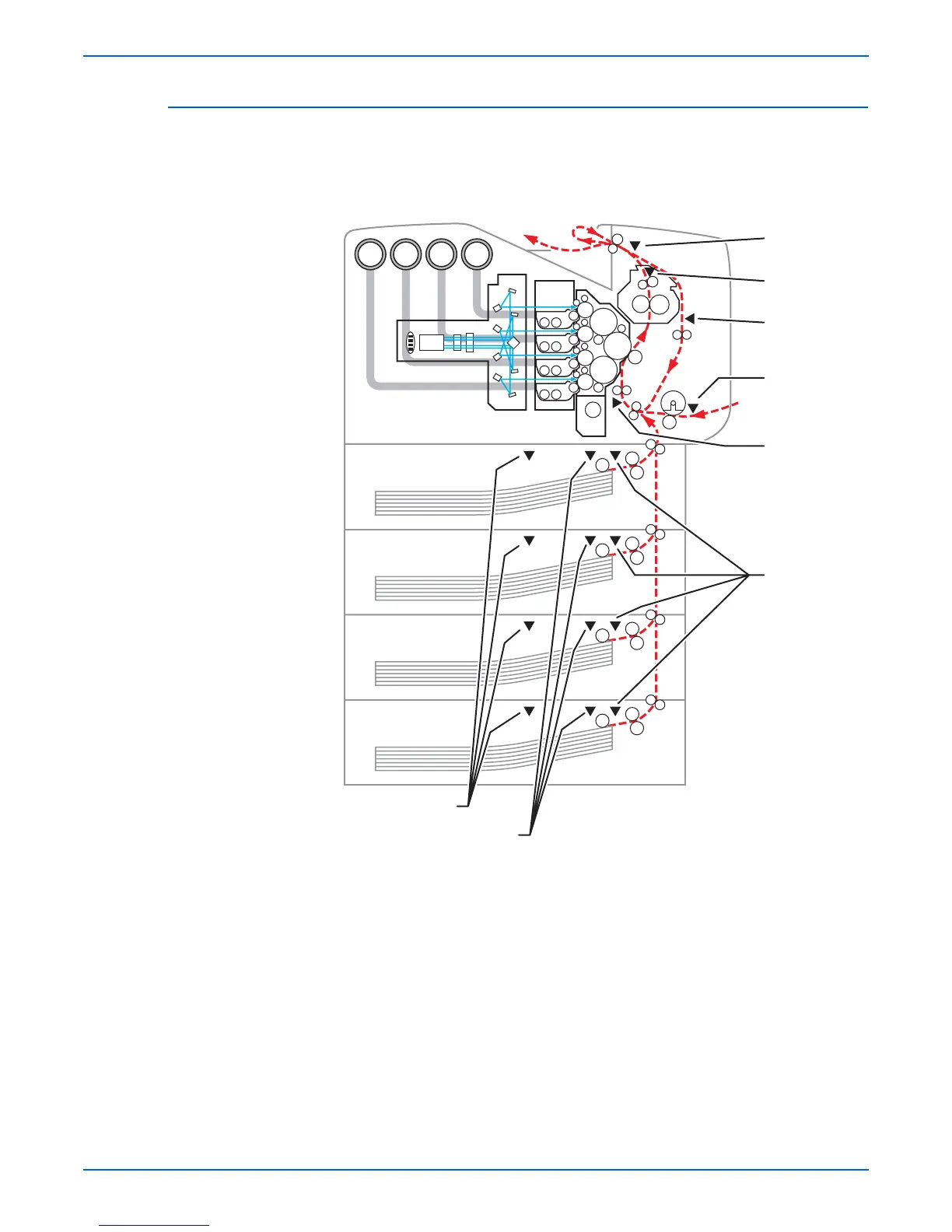

The following illustration identifies the various sensors located along the
paper path. Error reporting is dependent on these designators. Error detection
is based on paper transport timing through the sensing area.
Low Paper Sensor
Full Stack
Sensor
Fuser Exit
Sensor
Duplex Jam
Sensor
Tray 1 (MPT)
No Paper
Sensor
No Paper
Sensor
Registration
Sensor
Paper Size Sensor
s6360-340
