2-20 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Theory of Operation

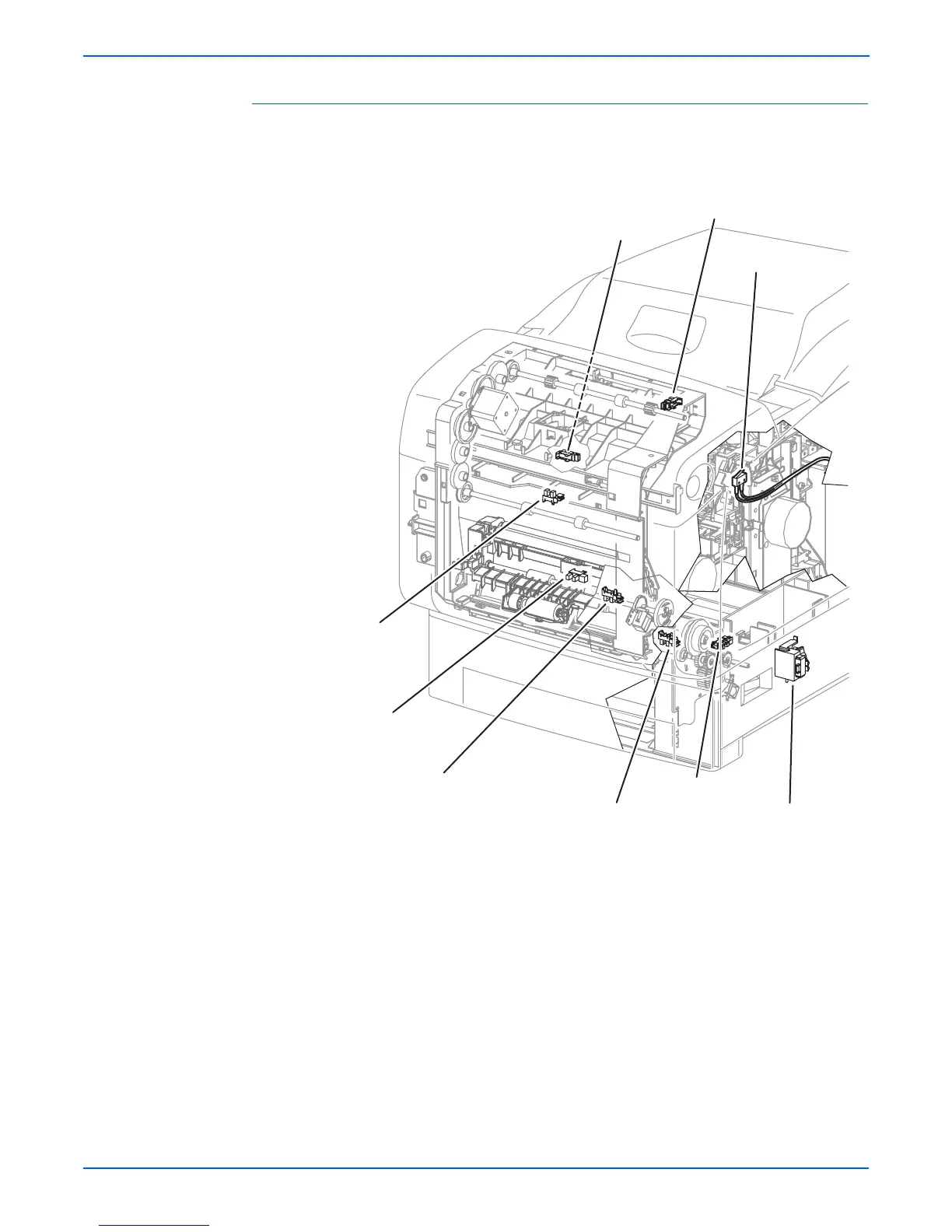

Paper Path Sensor Locations
The following diagrams show the relative position of sensors located along the
paper path.
Fuser Exit
Sensor
Full Stack Sensor
Interlock Switch
Tray 1 (MPT) No Paper Sensor
Duplex Jam
Sensor
Registration Sensor
Low Paper Sensor
Paper Size Switch
No Paper Sensor
s6360-362
