Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-37
Service Parts Disassembly
Retard and Registration
Caution
After removal of the Imaging Unit, protect the Developer Assemblies by
covering the rollers with a sheet of paper or other similar technique.

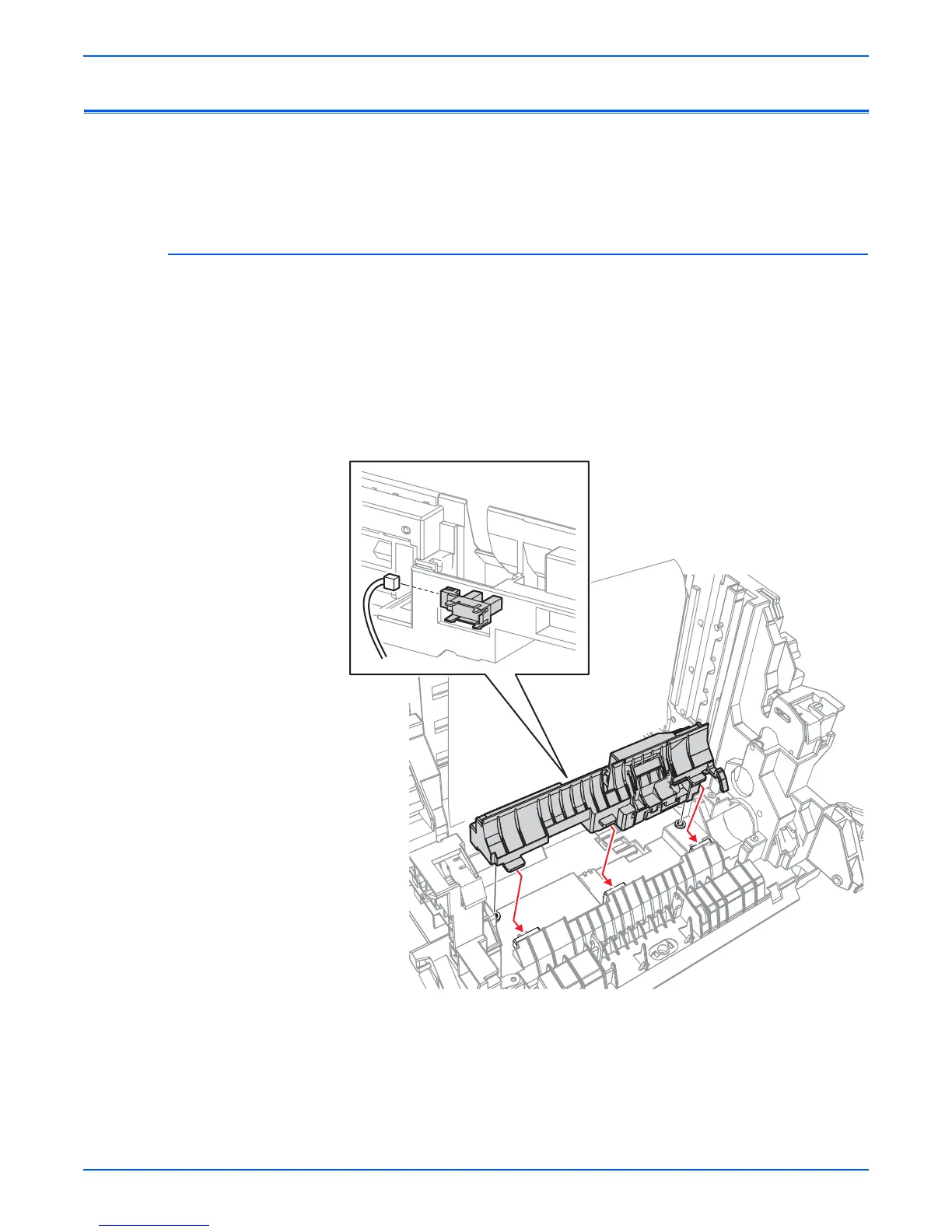

Registration Chute (PL4.1.5)
1. Open Door A.
2. Remove the Imaging Unit.
3. Remove the Registration Roller Assembly (page 8-41).
4. Release the sensor wiring from the bottom harness guides.
5. Remove the connector (P/J181) of Registration Sensor on the
Registration Chute.
6. Lift the rear part of Registration Chute and pull it out rearward to remove.
s6360-156
