8-148 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Low Paper Sensor Actuator (PL11.3.16)
1. Remove the Upper Chute (page 8-33).
2. Turn over Upper Chute.

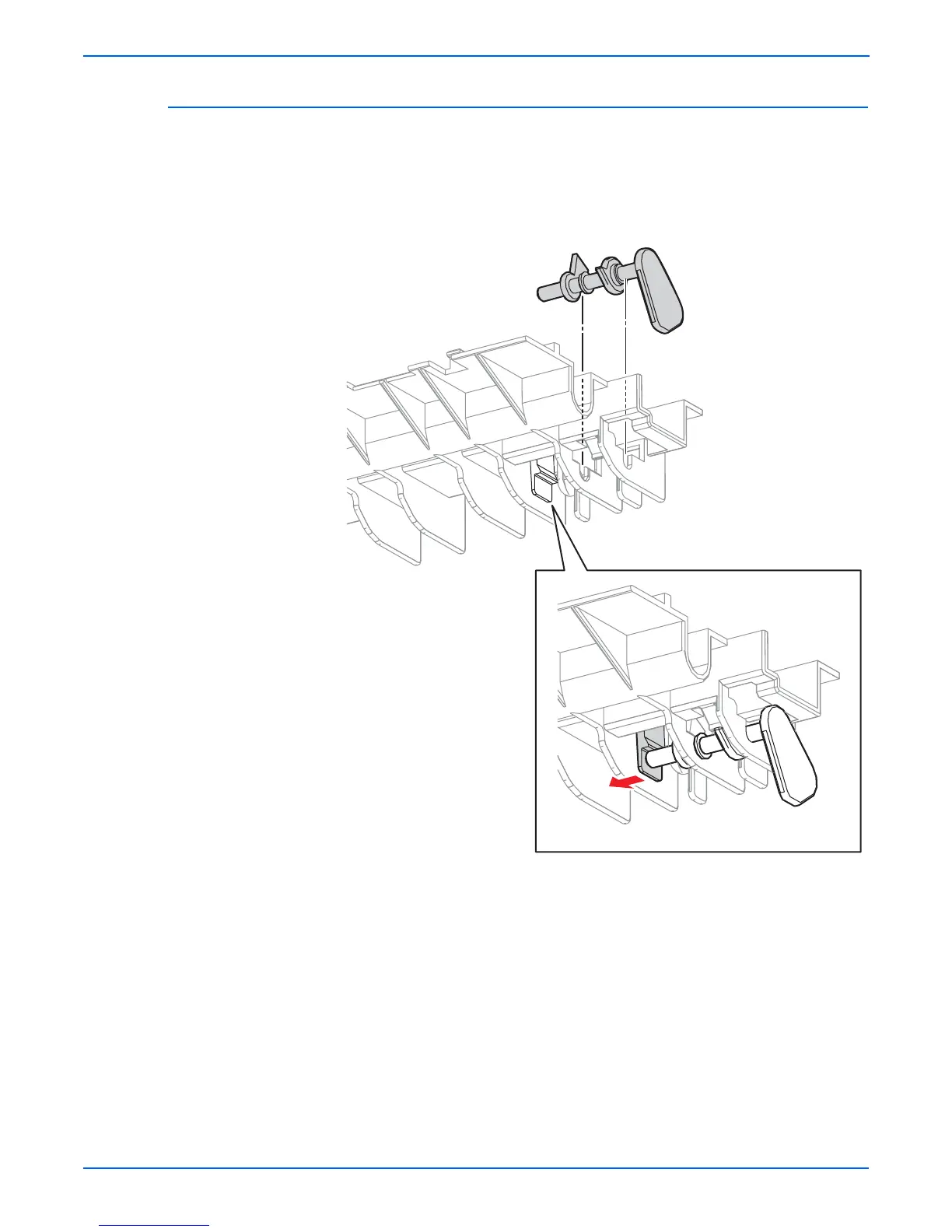

3. Release the hook that secures the Low Paper Sensor Actuator and
remove the end of the actuator shaft from the Upper Chute.
s6360-150
