8-94 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Drive
Developer Drive Assembly (PL8.1.1)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Right Side Cover (page 8-14).

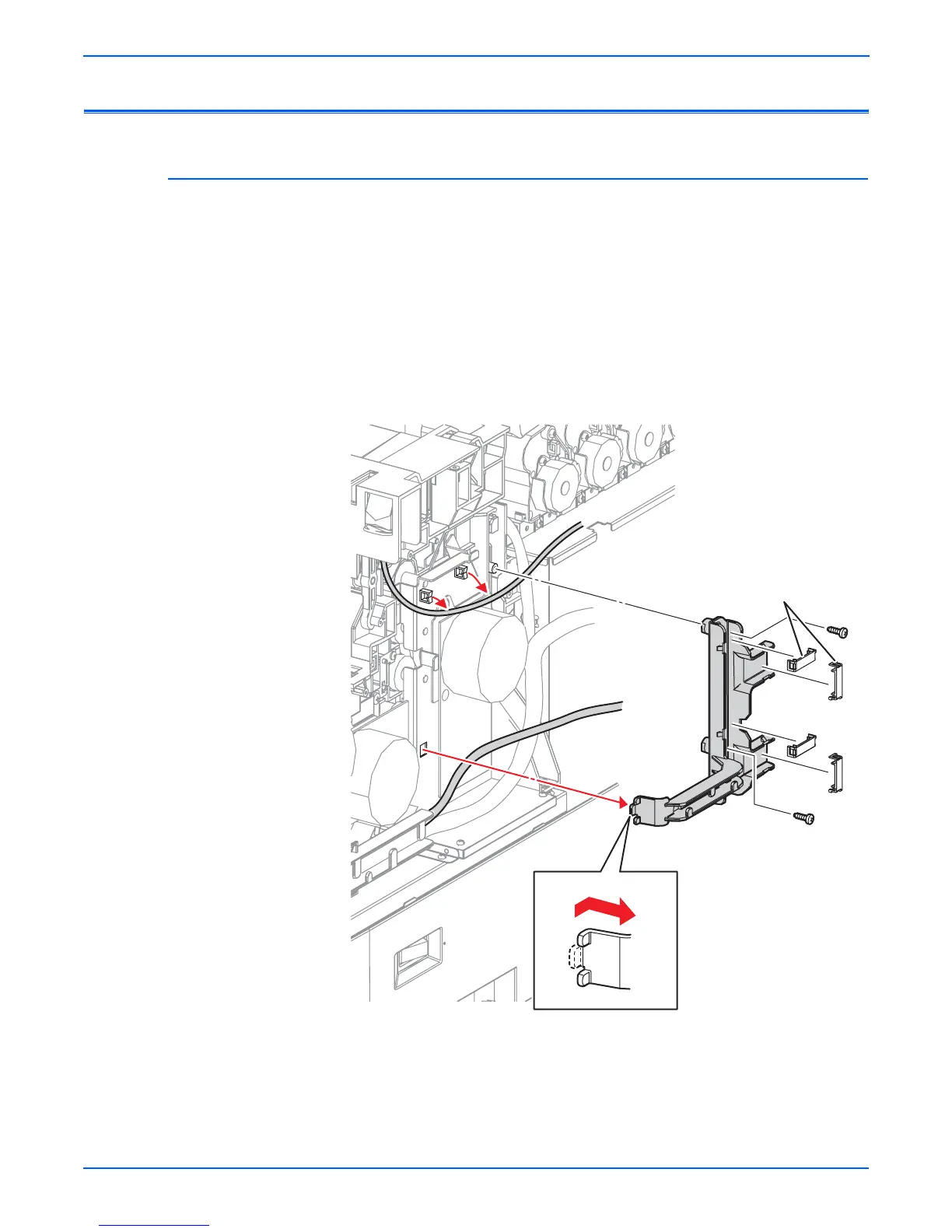

3. Remove the four Harness Guide Clamps from the Rear Harness Guide
and remove the harnesses.
4. Release the clamps on the Developer Drive Assembly and remove the
Interlock Switch harness.
5. Remove the 2 screws (silver, tap 10 mm) that secure the Rear Harness
Guide and move the guide to the rear to release the front hook from the
Developer Drive Assembly.
6. Remove the Rear Harness Guide.
s6360-209
Clamps
