8-150 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
No Paper Sensor Actuator (PL11.3.22)
1. Remove the 550-Sheet Feeder (page 8-135).
2. Remove the Right Cover (page 8-136).
3. Remove the Left Cover (page 8-137).
4. Remove the Drive Assembly (page 8-147).
5. Remove Paper Pick Assembly (page 8-142).

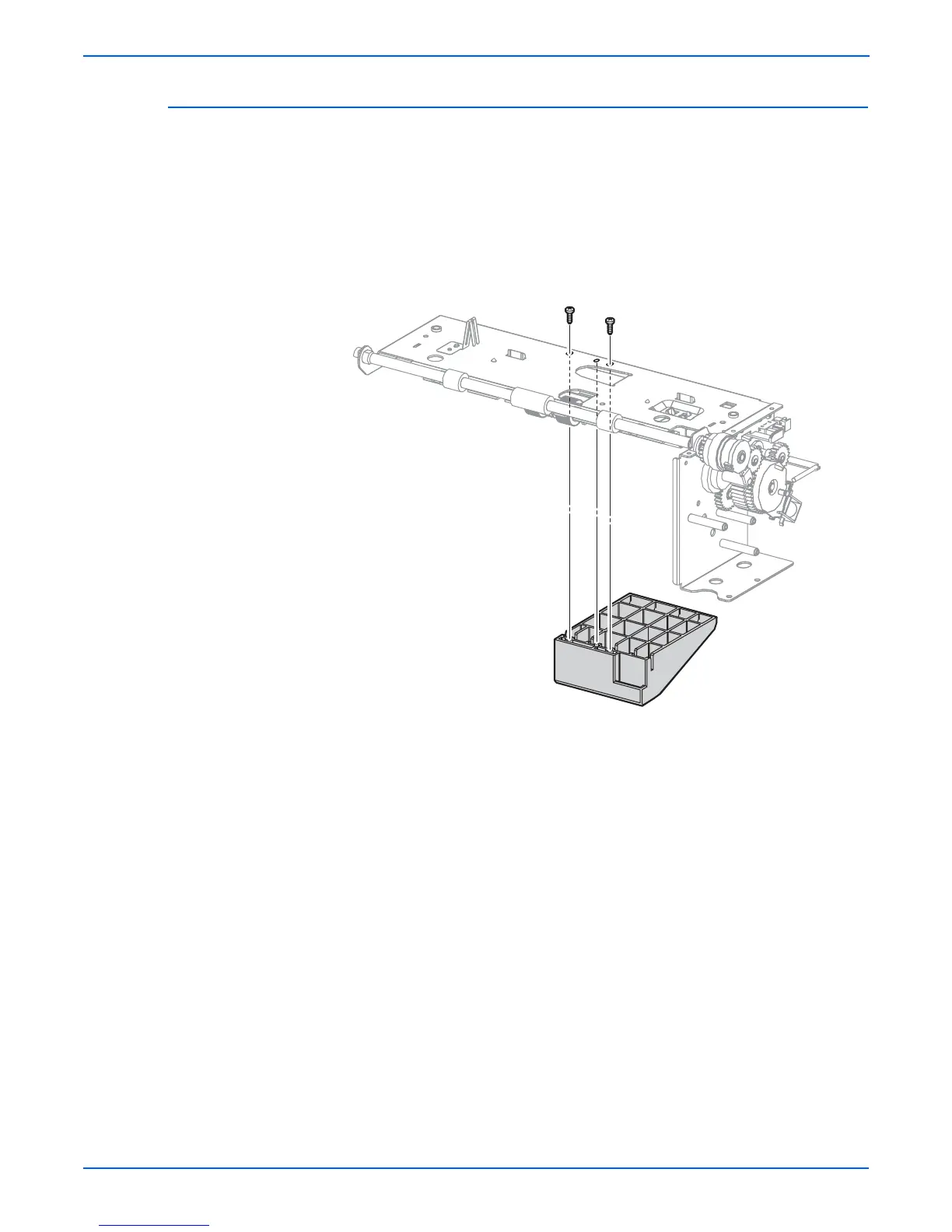

6. Remove 2 screws (self-tapping, plastic 8 mm) that secure the Paper
Guide to the Paper Pick Assembly.
s6360-245
