Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-151
Service Parts Disassembly

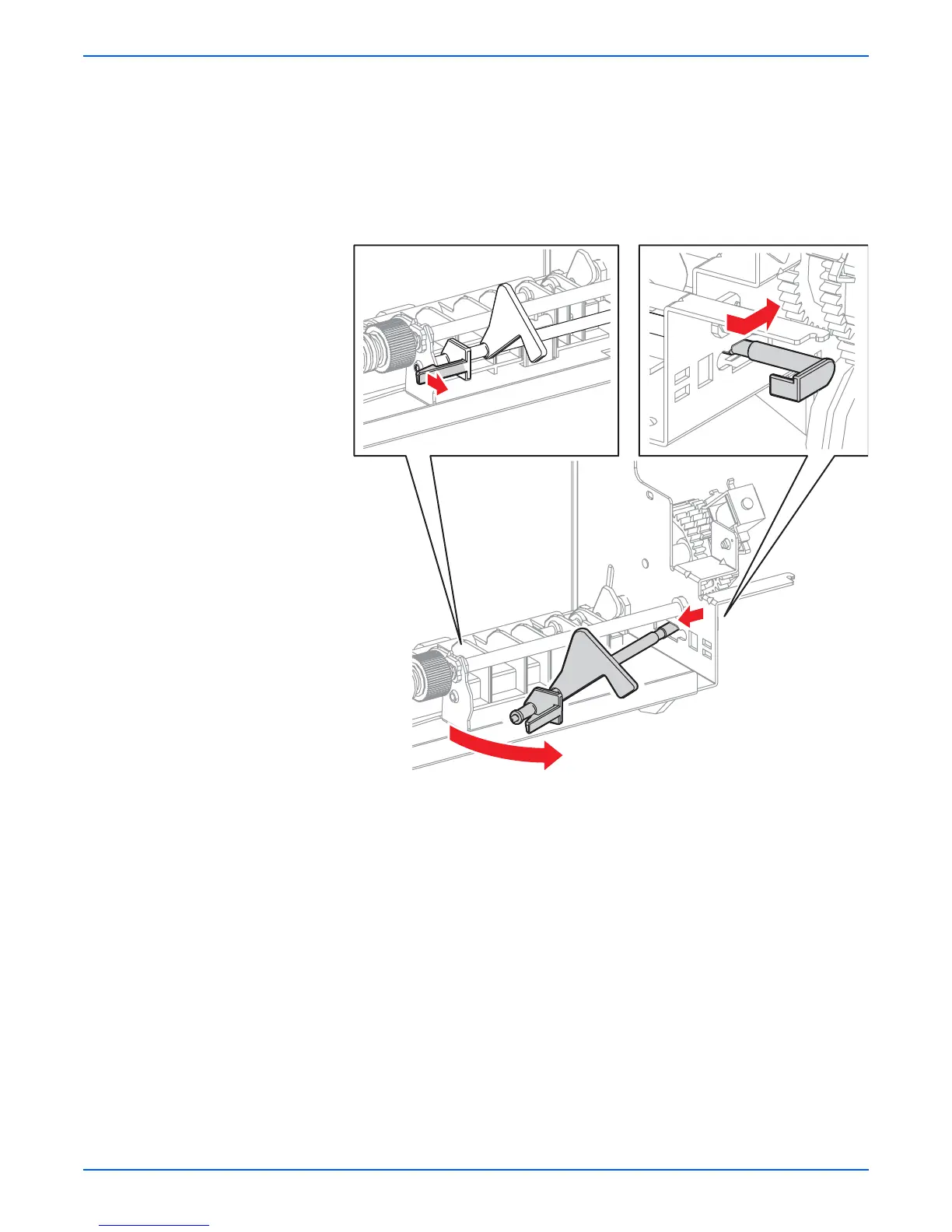

7. Turn over the Paper Pick Assembly.
8. Release the hook that secures the No Paper Sensor Actuator to the
Paper Pick Assembly.
9. Push the actuator shaft slightly away from the sensor to move the shaft to
the larger opening in the slot.
10. Remove the actuator out of the slot of Paper Pick Assembly while moving
the hook side of actuator toward you.
s6360-15
