Phaser 6300/6350/6360 Color Laser Printer Service Manual 1-9
General Information
550-Sheet Feeder
The 550-Sheet Feeder (Tray 3) increases the input capacity of the printer. The
feeder attaches below Tray 2 with four screws. When used in combination with
the 1100-Sheet Feeder, the 550-Sheet Feeder is installed between the printer
and 1100-Sheet Feeder. Only one 550-Sheet Feeders per printer is allowed.
Electrical connection to the printer is made by a single interface connector.
1100-Sheet Feeder
The 1100-Sheet Feeder adds two, 550-sheet trays. Control signals reach the
sheet feeder by a single connection. The sheet feeder is secured to the print
engine or 550-Sheet Feeder with four screws located under the front and rear
edges of the tray.

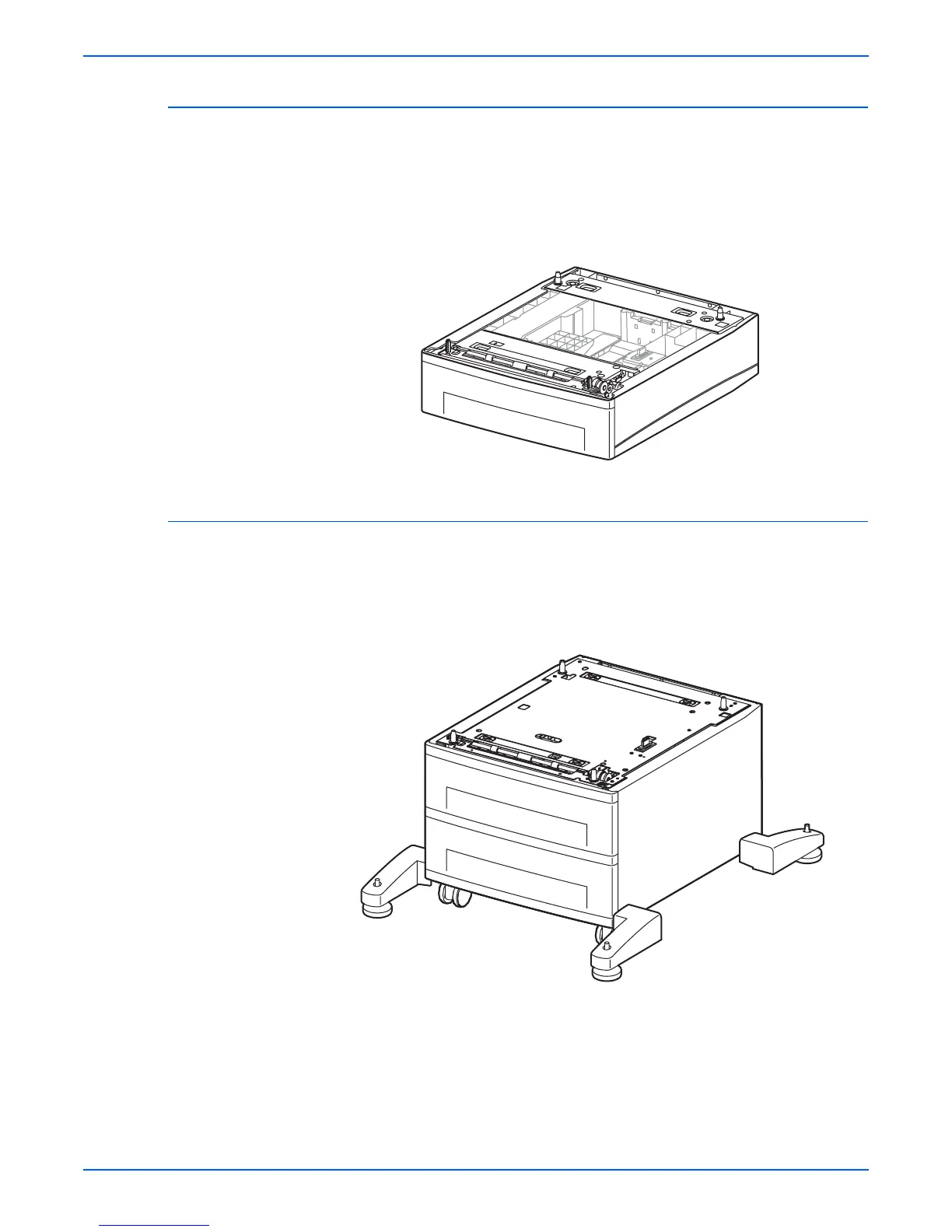

s6360-018
s6300-019
