Service Parts Disassembly
EEPROM Board (PL9.1.12)
1. Remove the Top Main Cover (page 8-11).
2. Remove the Right Side Cover (page 8-14).
3. Remove the 4 clamps that hold the harness in the Rear Harness Guide
and remove the harness.
4. Remove the 2 screws (self-tapping, plastic 10 mm) that secure the Rear
Harness Guide.
5. Unplug connector (P/J144) from the EEPROM Board.
6. Remove the screw (self-tapping, plastic 10 mm) that secures the
EEPROM Board and remove.

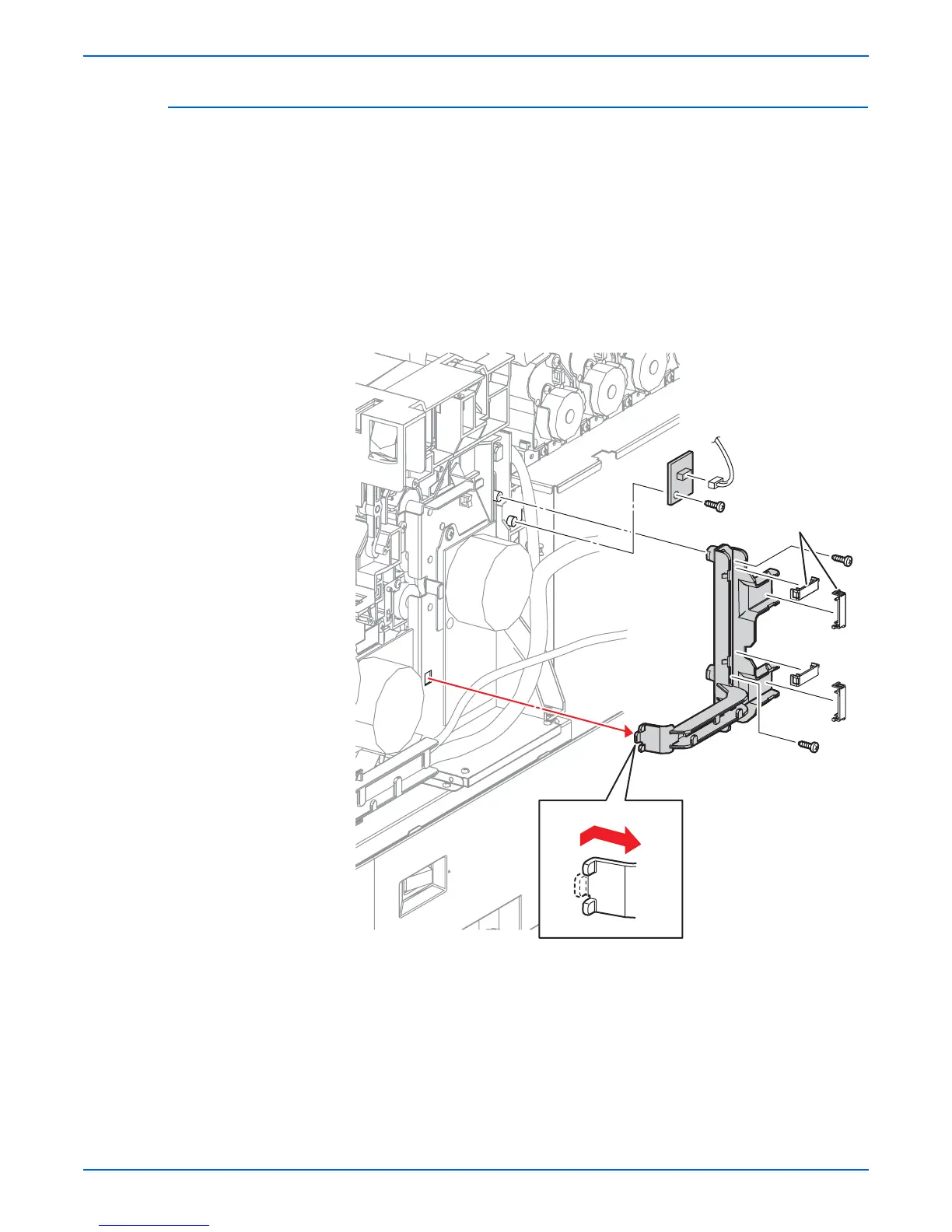

s6360-217
Clamps
P/J144
